Product Overview
AL802ULADA is an extremely cost effective voltage regulated remote NAC Power Extender. It may be connected to any 24 volt Fire Alarm Control Panel (FACP). Primary applications include Notification Appliance Circuit (NAC) expansion (supports ADA requirements) and providing auxiliary power to support system accessories. This product replaces AL800ULADA
Main Features
2-wire horn/strobe Sync mode allows audible notification appliances (horns) and visual notification appliances (strobes) to be silenced/deactivated at the same time.
Signal circuit trouble memory (helps identify intermittent loop problems).
Ground fault detection.
Compatible with 12VDC or 24VDC fire panels.
Output loop supervision steered to Input 1 or Input 2.
Signal circuit trouble memory (helps identify intermittent loop problems).
Common trouble input and output for external trouble signals tie-in.
Ground fault detection.
General Information
Name: Altronix AL802ULADA NAC Power Supply, Class or Class Outputs, 24VDC at 8A, Red BC400 Enclosure (Replaces AL800ULADA), Altronix Corporation, Altronix
Category: Altronix, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
UPC Code: 782239932405
Country of Origin: United States. Country of origin is subject to

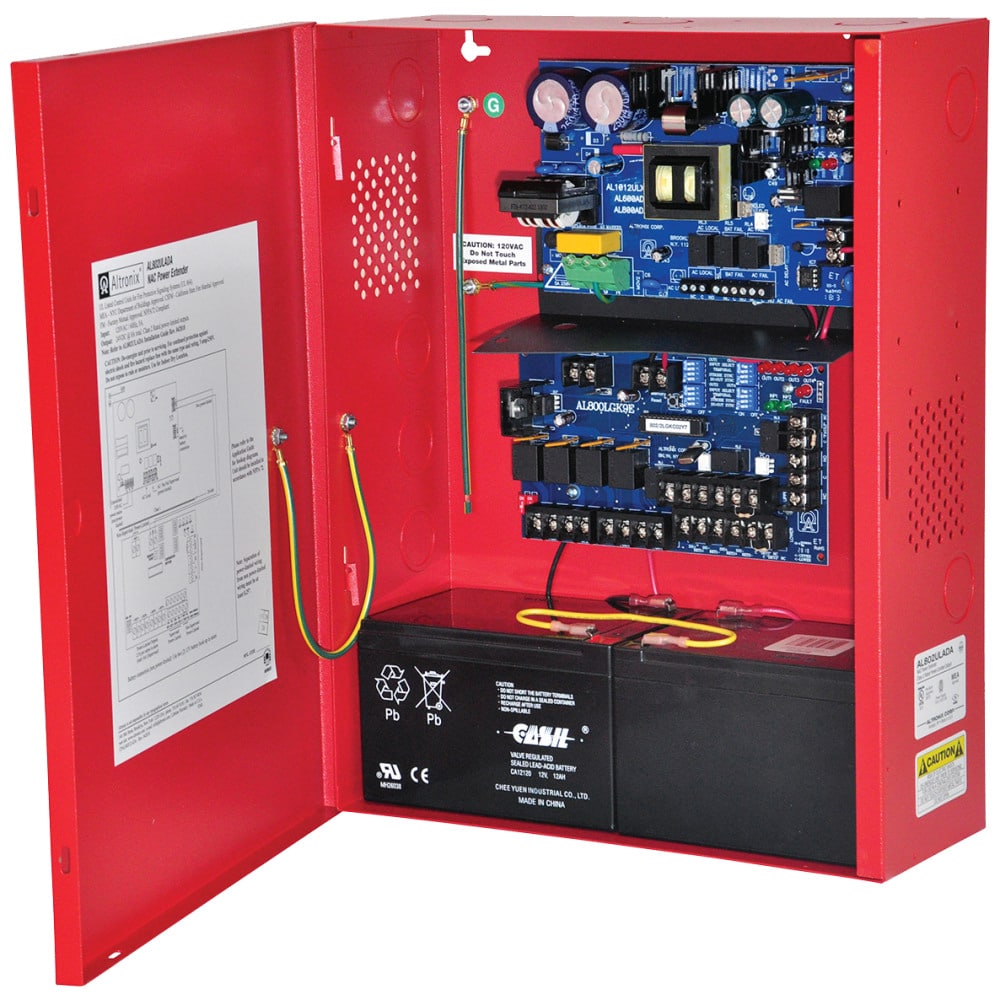

AL802ULADA Altronix Power Supply
NAC Power Extender, Input 120VAC 60Hz at 5A, Class 2 Rated Power Limited Outputs, Red Enclosure
$476.36
Buy Now
