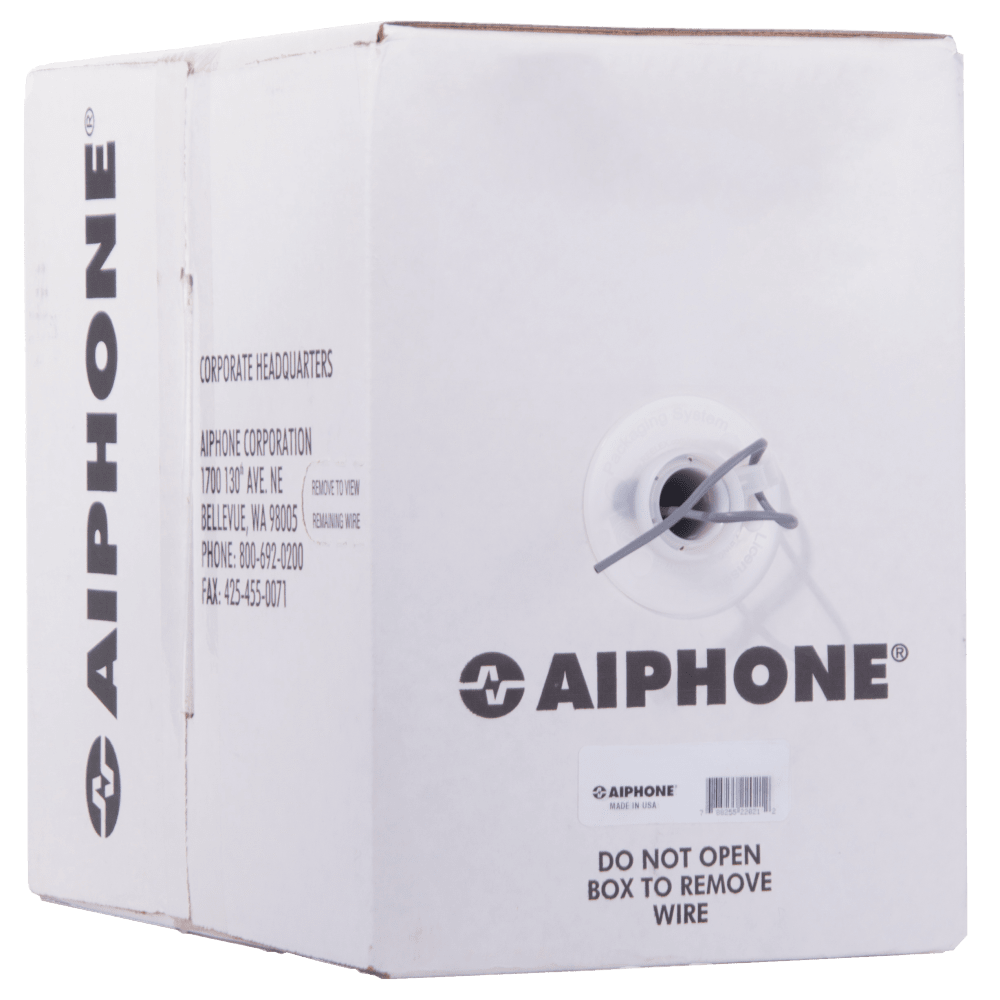

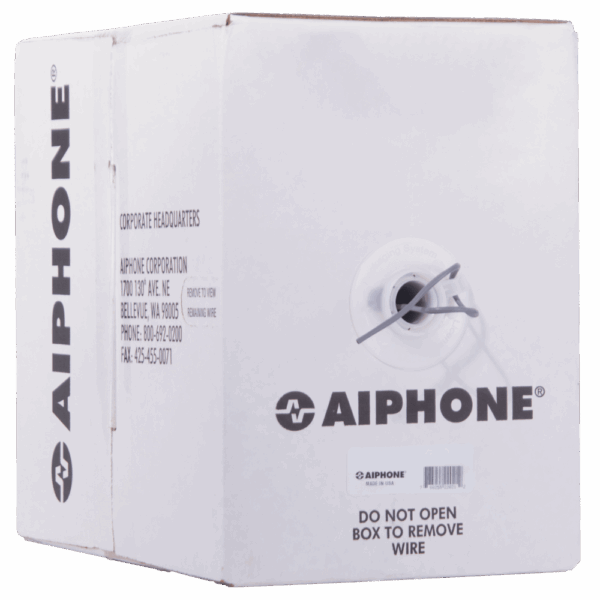

Aiphone 87180450C 4-Conductor, 18AWG, Solid, Non-Shielded, Low Cap Wire,
Low capacitance, non-shielded
Technically matched to designated system’s wire specifications
Extends product warranty by one additional
$344.99
Product Overview
18 AWG 4 conductors solid bare copper wire with PVC insulation, unshielded and an overall PVC jacket for low-voltage electronic cable applications.
Main Features
- Low capacitance, non-shielded
- Technically matched to designated system’s wire specifications
- Extends product warranty by one additional year
- UL and c(UL)us listed
- RoHS III and REACH compliant
- Made in USA
| Specifications | |||||||||||||||||||
| Part Number | 87180450C | NDAA Compliant | Yes | Product Model | 87180450C | Product Name | 87180450C Control Cable | Product Type | Control Cable | ||||||||||
| Technical Information | |||||||||||||||||||
| American Wire Gauge | 18AWG | Cable Listing | CL3, CM, FPL, FT4 | Cable Rating | Riser | Cable Type | Bare Wire | Conductor Count | 4 | Device Supported | Fire Alarm, Intercom | Jacket Material | PVC | Number of Conductors | 4 | Shielding | No | Solid or Stranded | Solid |
| Physical Characteristics | |||||||||||||||||||
| Cable Length | 500' | Color | Gray | Insulation Material | PE, PVC | Material | PVC | Product Color | Gray | Product Material | Bare Copper | Weight (Approximate) | 17 lb | ||||||
| Warranty | |||||||||||||||||||
| Limited Warranty | 1 Year | ||||||||||||||||||
| Miscellaneous | |||||||||||||||||||
| Weight | 20 lbs |
|---|
