Product Overview
Designed for use with Adams Rite deadlatches or cylindrical locksets with 1/2″ [12.7 mm] to 5/8″ [15.9 mm] latchbolt projection.
For use in aluminum, hollow metal, or wood applications.
Open electrically under 25 lbs [11.3 kg] of preload. Preload is pressure exerted on doors by air conditioning systems, warping or misaligned hardware which can disable common electric strikes.

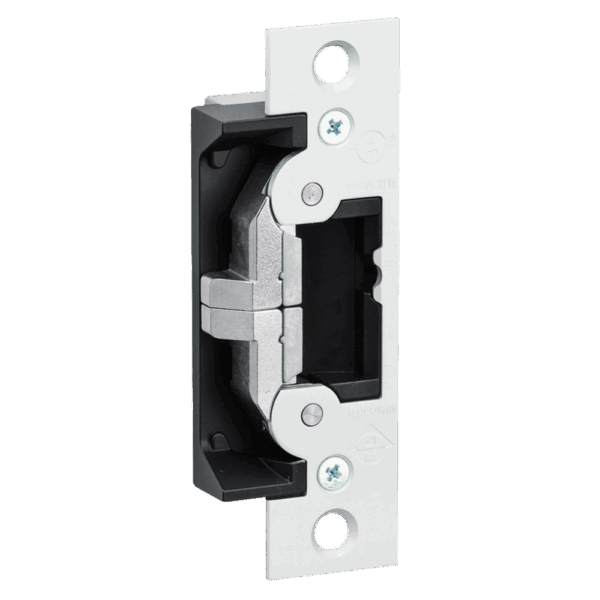

Function: This non-handed strike features an ultra-compact design and adjustable stainless steel keepers with over 1,500 lbs [680.4 kg] of holding force in fail secure mode. The strike releases electrically with up to 25 lbs of door preload. Single solenoid operates on 12/16/24 VDC power. Remote electrical control of narrow stile aluminum doors equipped with an Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical lockset with 1/2″ [12.7 mm] to 5/8″ [15.9 mm] latchbolt projection. Electrical actuation unlocks the keeper, releasing the latchbolt so the door may be opened without operating the latch itself.
Main Features
- Designed for use with Adams Rite 4500 and 4900 Series deadlatches and an array of cylindrical locksets with 1/2” to 5/8” latchbolt projection
- Opens electrically under 25 lbs of preload
- Dual voltage 12/24V DC
- Field selectable fail safe / fail secure
- Faceplates available in a variety of size, shape, architectural finishes
