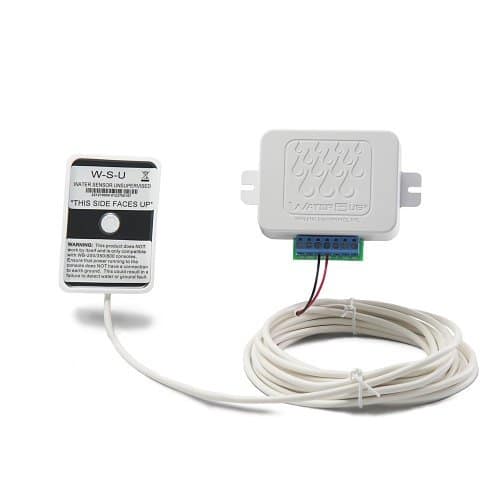

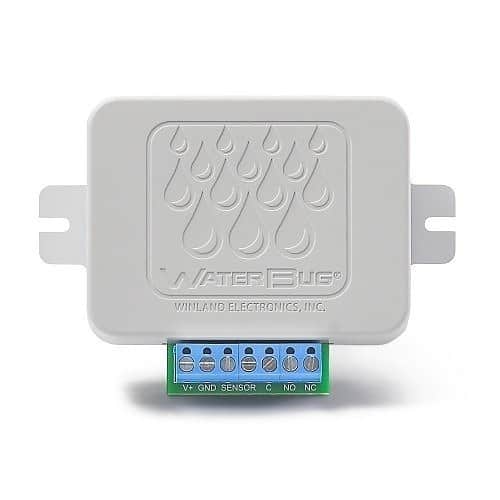

Winland WB200 Winland WB-200 Waterbug 200 Electrical Water Detection
Monitors for the presence of water. Can be used to detect the absence of water.
Device includes one standard unsupervised surface sensor (W-S-U).
Device accepts up to six total sensors (W-S-U). Additional sensors (W-S-U) sold
$102.35
Product Overview
The WaterBug 200 (“WB200”) is a water detection device ideal for computer rooms, document storage areas, warehouses, sump pumps and basements. WaterBug sensors activate the alarm when a conductive bridge is formed between 2 contacts. Protect your assets with the WB200.
Main Features
- Monitors for the presence of water. Can be used to detect the absence of water.
- Device includes one standard unsupervised surface sensor (W-S-U).
- Device accepts up to six total sensors (W-S-U). Additional sensors (W-S-U) sold separately.
- 1 to 2 sensors can be located up to 200′ (60.96m) or 3 to 6 sensors can be located up to 100′ (30.48m) away from the device for a wide area of protection. Use 18-22 AWG twisted pair wire for extension of sensors from the device.
- Hard wire powered device. Ensure that the power running to the device does NOT have a connection to earth ground. This could result in a failure to detect water or ground fault.
- Power requirements of 8 to 28V DC at 35mA or 12 to 28 V AC at 100mA
- Unit operating range of 32 to 130 F (0 to 54 C) in non-condensing environment. Indoor use only.
- Output is 1 Form C (N.O./N.C.) with 30V DC at 1 Amp resistive/24V AC at 1 Amp resistive
- Dimensions of 4.1″ x 2.36″ x 1.18″ (10.4cm x 6.0cm x 3.0cm)
| Specifications | |||||||||||||
| Part Number | WB200 | Product Line | WaterBug | Product Model | WB-200 | Product Name | WaterBug WB-200 Industry Preferred Water Detection System | Product Series | WaterBug 200 | Product Type | Water Detection Device | Weight (Approximate) (g) | 100 |
| Technical Information | |||||||||||||
| Connectivity Technology | Wired | ||||||||||||
| Physical Characteristics | |||||||||||||
| Form Factor | Wall Mount | Weight (Approximate) | 3.53 oz | ||||||||||
| Power Description | |||||||||||||
| Input Voltage | 24V DC | ||||||||||||
| Miscellaneous | |||||||||||||
| Additional Information | Will not alarm due to high humidity or condensation. | Environmental Certification | PROP67, REACH, RoHS | Environmentally Friendly | Yes | Package Contents | WaterBug WB-200 Industry Preferred Water Detection SystemSurface Sensor (Unsupervised) W-S-U with 15' (4.57 m) Cable | TAA Compliant | No |
| Weight | 2 lbs |
|---|
