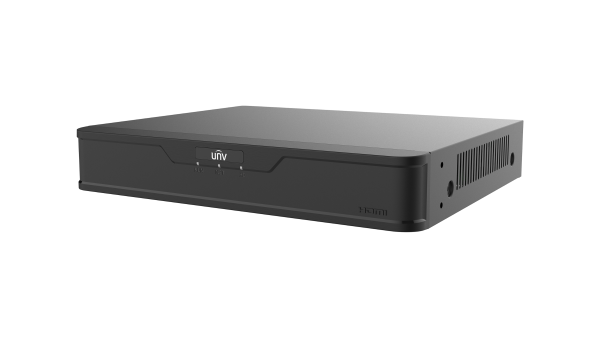

XVR301-04Q4 |
XVR301-08Q4 |
XVR301-16Q4 |
| Video/Audio Input |
| IP Video Input |
2-ch |
4-ch |
8-ch |
| Analog Video Input |
4-ch, BNC |
8-ch, BNC |
16-ch, BNC |
| Max IP Video Input |
6-ch |
12-ch |
24-ch |
| Supported Analog Camera Types |
Support AHD input:
8MP@15fps
5MP@20fps
5MP@12fps
4MP@30fps
4MP@25fps
4MP@15fps
1080P@30fps
1080P@25fps
720P@30fps
720P@25fps
Support TVI input:
8MP@15fps
8MP@12fps
3K@20fps
5MP@20fps
5MP@12fps
4MP@30fps
4MP@25fps
4MP@15fps
1080P@30fps
1080P@25fps
720P@30fps
720P@25fps
Support CVI input:
8MP@15fps
8MP@12fps
5MP@25fps
5MP@20fps
4MP@30fps
4MP@25fps
1080P@30fps
1080P@25fps
720P@30fps
720P@25fps
Support CVBS input |
| BNC Audio Input |
4-ch, channel audio |
8-ch, channel audio |
16-ch, channel audio |
| RCA Audio Input |
1-ch |
| 3.5mm Audio Input |
N/A |
| Video/Audio Output |
| Video Output |
Support 1-ch CVBS output, 1-ch HDMI, 1-ch VGA, VGA and HDMI simultaneous output |
| HDMI Output |
HDMI: 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| VGA Output |
VGA: 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| HDMI Standard |
HDMI 1.4 |
| BNC Video Output |
1-ch |
| BNC Audio Output |
4-ch, channel audio |
8-ch, channel audio |
16-ch, channel audio |
| RCA Audio Output |
1-ch |
| 3.5mm Audio Output |
N/A |
| Live View Display |
HDMI/VGA: 1/4/6/8/9 |
HDMI/VGA: 1/4/6/8/9/16 |
HDMI/VGA: 1/4/6/8/9/16/25 |
| Default Num of Live Screen |
VGA: 4; HDMI: 4 |
VGA: 8; HDMI: 8 |
VGA: 16; HDMI: 16 |
| Playback Screen |
1/4/9 |
1/4/9/16 |
1/4/9/16 |
| Encoding/Decoding |
| Recording Resolution |
8MP Lite/3K Lite@12/5MP Lite/4MP Lite/1080P/720P/D1 |
| Recording Frame Rate |
Main stream: 8MP Lite@8fps Sub stream: D1@8fps
Third Stream: CIF@8fps
Main stream: 3K Lite@12fps Sub stream: D1@12fps
Third Stream: CIF@12fps
Main stream: 5MP Lite@12fps Sub stream: D1@12fps
Third Stream: CIF@12fps
Main stream: 4MP Lite@15fps Sub stream: D1@15fps
Third Stream: CIF@15fps
Main stream: 1080P@15fps Sub stream: D1@15fps
Third Stream: CIF@15fps
Main stream: 720P@30fps
Sub stream: D1@30fps
Third Stream: CIF@30fps |
Main stream: 8MP Lite@8fps Sub stream: D1@8fps
Third Stream: CIF@8fps
Main stream: 3K Lite@12fps Sub stream: D1@12fps
Third Stream: CIF@12fps
Main stream: 5MP@6fps
Sub stream: D1@6fps
Third Stream: CIF@6fps
Main stream: 5MP Lite@12fps Sub stream: D1@12fps
Third Stream: CIF@12fps
Main stream: 4MP@15fps
Sub stream: D1@15fps
Third Stream: CIF@15fps
Main stream: 1080P@15fps Sub stream: D1@15fps
Third Stream: CIF@15fps
Main stream: 720P@30fps
Sub stream: D1@30fps
Third Stream: CIF@30fps |
Main stream: 8MP Lite@8fps Sub stream: D1@8fps
Third Stream: CIF@8fps
Main stream: 3K Lite@12fps Sub stream: D1@12fps
Third Stream: CIF@12fps
Main stream: 5MP@6fps
Sub stream: D1@6fps
Third Stream: CIF@6fps
Main stream: 5MP Lite@12fps Sub stream: D1@12fps
Third Stream: CIF@12fps
Main stream: 4MP@15fps
Sub stream: D1@15fps
Third Stream: CIF@15fps
Main stream: 1080P@15fps Sub stream: D1@15fps
Third Stream: CIF@15fps
Main stream: 720P@30fps
Sub stream: D1@30fps
Third Stream: CIF@30fps |
| Audio Sample Rate |
8 kHz, 16 bit per channel |
| Audio Bit Rate |
64 Kbps per channel |
| Decoding Capability |
Analog: 4 x 8MP Lite@8, 4 x 3K Lite@12, 4 x 5MP Lite@12, 4x 4MP Lite@15, 4 x 1080P@15, 4 x 720P@30
IP: 1 x 4k@15,1 x 6MP@20,1 x 5MP@20,1 x 4MP@30, 1 x 3MP@30, 2 x 1080P@30, 4 x 720P@30 |
Analog: 8 x 8MP Lite@8, 8 x 3K Lite@12, 8 x 5MP@6, 8 x 5MP Lite@12, 8 x 4MP@15, 8 x 1080P@15, 8 x 720P@30
IP: 1 x 8MP@30, 1 x 6MP@30, 1 x 5MP@30, 2 x 4MP@30, 2 x 3MP@30, 4 x 1080P@30, 8 x 720P@30 |
Analog: 16 x 8MP Lite@8, 16 x 3K Lite@12, 16 x 5MP@6,16 x 5MP Lite@12, 16 x 4MP@15,16 x 1080P@15,16 x 720P@30
IP: 2 x 8MP@30, 2 x 6MP@30, 2 x 5MP@30, 4 x 4MP@30, 4 x 3MP@30, 8 x 1080P@30, 16 x 720P@30 |
| Num of Concurrent Playback |
8-ch |
16-ch |
32-ch |
| Num of Concurrent Playback in Local |
4-ch |
8-ch |
16-ch |
| Coaxial Cable |
| Analog camera Upgrade over Coaxial Cable |
Support |
| Audio over Coaxial Cable(Form) |
4-ch, One-way Audio(TVI UNV )/One-way Audio(CVI UNV) |
8-ch, One-way Audio(TVI UNV )/One-way Audio(CVI UNV) |
16-ch, One-way Audio(TVI UNV )/One-way Audio(CVI UNV) |
| Two-way Audio |
| Two-way Audio |
1-ch (with IP Camera or specific Analog Camera ) |
| Analog Snapshot |
| FTP/Schedule/Event Snapshot |
Schedule/FTP/Event snapshot:6-ch snapshot, up to 3840*2160 resolution |
Schedule/FTP/Event snapshot:12-ch snapshot, up to 3840*2160 resolution |
Schedule/FTP/Event snapshot:24-ch snapshot, up to 3840*2160 resolution |
| Network |
| Incoming Bandwidth |
40Mbps (Up to 48Mbps after all analog channel conversion) |
40Mbps (Up to 56Mbps after all analog channel conversion) |
80Mbps (Up to 112Mbps after all analog channel conversion) |
| Outgoing Bandwidth |
48Mbps |
64Mbps |
160Mbps |
| Max users can be added |
32 |
| Remote Users |
128 |
| Protocols |
TCP/IP, P2P, UPnP, NTP, DHCP, HTTP, DNS, DDNS, SMTP, HTTPS |
TCP/IP, P2P, UPnP, NTP, DHCP, HTTP, DNS, DDNS, SMTP, HTTPS |
TCP/IP, P2P, UPnP, DHCP, NTP, HTTP, DNS, DDNS, SMTP, HTTPS |
| Browser(Plugin) |
IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
| Browser(Plugin-Free) |
Chrome 57+, Edge 16+, Firefox 58+, Safari 11+ |
| Smart |
| Analog Smart by XVR |
Ultra Motion Detection (UMD) , Face Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area) |
| IP Smart by IPC |
Face Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Defocus Detection, Scene Change Detection, Auto Tracking, Object Left Behind, Object Removed, People Flow Counting |
Face Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Defocus Detection, Scene Change Detection, Object Removed, Object Left Behind, Auto Tracking, People Flow Counting |
Face Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Defocus Detection, Scene Change Detection, Object Removed, Object Left Behind, Auto Tracking, People Flow Counting |
| VCA Search |
Face Search, Behavior Search, People Counting Report |
| Smart Functions by XVR |
1-ch (Face Detection), 2-ch (SIP), 4-ch (UMD) |
1-ch (Face Detection), 4-ch (SIP), 8-ch (UMD) |
2-ch (Face Detection), 4-ch (SIP), 16-ch (UMD) |
| Alarm |
| General Alarm |
Motion |
| Alert Alarm |
IP Conflict, Network Disconnected, Disk offline, Illegal Access, Disk Abnormal, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| GUI Language |
| GUI Language |
38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
| Hard Disk |
| SATA |
1 SATA interface |
| Capacity |
Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Disk Group |
Support |
| External Interface |
| Network Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet Interface |
1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| Network Working Mode |
Single port, not involved |
| USB |
Rear panel: 2 × USB2.0 |
Rear panel: 2 × USB2.0 |
Rear panel: 1 × USB2.0, 1 × USB3.0 |
| RS485 |
1 |
| RS232 |
N/A |
| Alarm In |
4-ch |
| Alarm Out |
1-ch |
| Power Supply |
DC 12 V/2 A |
DC 12 V/2 A |
DC 12 V/3 A |
| Power Switch |
N/A |
| Redundant Power Supply |
N/A |
| Buzzer |
Support |
| Working Environment |
| Working Temperature |
-10 ℃ to 55 ℃ (14 ℉ to 131 ℉ ) |
| Working Humidity |
≤ 90% RH (non-condensing) |
| Power Consumption (without HDD) |
≤ 7W |
≤ 8W |
≤ 12W |
| Heat Radiation |
N/A |
Radiator |
Fan |
| Dimensions |
| Weight (without HDD) |
≤0.9Kg（1.98lb） |
| Height |
1U |
| Dimensions |
260mm × 226mm × 46.6mm
(10.2" x 8.9" x 1.8") |
260mm × 226mm × 46.6mm
(10.2" x 8.9" x 1.8") |
260mm × 251mm × 45.8mm
(10.2" x 9.9" x 1.8") |
| Certification |
| Certification |
CE, FCC, UL, RoHS, WEEE |
| CE |
EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
| FCC |
Part15 Subpart B |
| Compliance |
| NDAA Compliant |
Support |
| Feature supported |
| Cruise lines num of each camera |
4 |
| Preset num |
32 |
| N+1 Hot Spare |
N/A |
| Fisheye Dewarping by IPC |
N/A |
| Fisheye Dewarping by NVR (Local) |
N/A |
| ANR |
Support |
| Downlink ONVIF |
Support (Profile S) |
| Uplink ONVIF |
N/A |
| UCS(Web socket) |
N/A |
| NAS |
Support |
| Ucode Basic Mode(Analog) |
Support |
| Ucode Basic Mode(IPC) |
Support |
| Ucode Advanced Mode(Analog) |
Support |
| Ucode Advanced Mode(IPC) |
Support |
| POS |
N/A |
| Control the Dual-light of UNV Analog Cameras under TVI |
Support |
| Output Mode |
Support |
