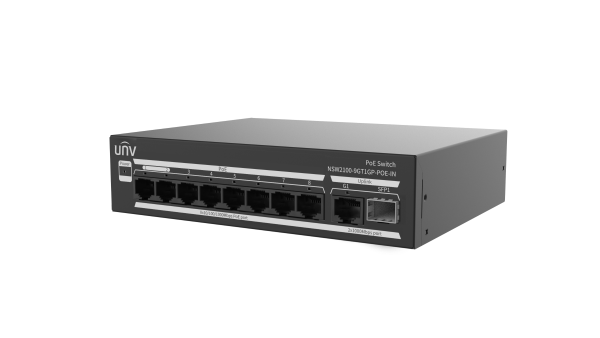

Name: Uniview NSW2100-9GT1GP-POE-IN Gigabits PoE Switch
SKU: NSW2100-9GT1GP-POE-IN
Availability: InStock

• Supports Web login, and device configuration and management on the Web interface.
• Supports visiting the cloud by scanning the QR code. Allows to view the device status in real time on the app, and remotely restart the PoE power supply.
• Supports PoE power supply ; allows to enable or disable PoE power supply for the powered device; allows up to 250m power supply using a standard network cable.
• Supports the extend mode for up to 250m communication range and 10Mbps auto-negotiation rate.
• Supports port priority. The priority port will be powered first when the PoE power supply is full.
• All metal casing, secure and reliable.

	NSW2100-9GT1GP-POE-IN
Hardware Specification
Ports Type	8x 10/100/1000Mbps PoE port (RJ45) 1 x 10/100/1000Mbps port (RJ45) 1 x Gigabit SFP
Switching capacity	20Gbps
Forwarding performance	14.88Mpps
Packet Buffer	4 M bit
MAC	8K
Prior Ports	1 to 2
Dimensions (W×D×H)	16913240mm
Power Supply	AC: 100V to 240V, 50/60Hz
PoE Standard	IEEE 802.3af, IEEE 802.3 at
PoE Mode	ModeA (1236),ModeB (4578)
Max.PoE Power	Max capacity: 120W Maximum PoE power for single port: 30W
Max.Power	125W
Cooling Fans	0
Weight	0.85KG
Operating Temperature	0°C to 45°C (32°F to 113°F)
Operating Humidity	10% to 90% (noncondensing)
Indicator	Power: Off: Abnormal power input. Green: Normal power input. Yellow: The total PoE power is higher than 85% of the total power of the device. Link/Act: Off: Disconnected to the port On: Connected to the port. Blinking: Transmitting data.
Software Specification
Ethernet	Supports full duplex, half duplex, and auto-negotiation working modes Supports enabling/disabling ports Supports port auto-negotiation rate Supports port flow statistics Supports four link aggregation groups (up to eight ports).
VLAN	allows up to 10 VLANs with IDs from 1 to 4094
MAC	Support static MAC, up to 32.
POE	Allows to view PoE status and enable/disable PoE power supply in the APP
Loop Detection	Loop Detection
Security	Supports port isolation
Maintenance	Supports N:1 port mirroring. Supports device upgrade, factory settings restoration, configuration import, configuration export, and device restart on the software.
System	Allows to view the device name, current version, IP address, MAC address, DNS, etc. Allows to edit and manage the IP address and device name.
Compliance
NDAA Compliant	Support

Downloads

UNV NSW2100-9GT1GP-POE-IN Lite Cloud Managed Gigabit Ethernet PoE Switch Datasheet

Weight	2 lbs
