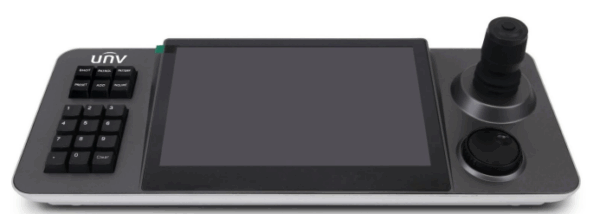

10.1” capacitive touch screen, 1280*800 resolution.
4D joystick control.
Supports image displaying on the touch screen or projecting to an HDMI-connected display device.
Supports simultaneous displaying of 8 video channels.
Supports connecting Uniview IPCs and NVRs via network.
Supports a maximum of 5,000 channels.
Supports H.264 and H.265.
Capable of decoding 1*4K, 4*1080P, or 8*720P videos.
Supports PTZ control, including up/down/left/right movement, zoom/focus operations.
Upgradeable via a USB drive.
General
-
Screen size: 10.1 inches
-
Decoding format: H.264 / H.265
-
Decoding capability: 1×4K @ 25 fps / 4×1080P @ 30 fps / 8×720P @ 30 fps
-
Split screen: 1 / 4 / 9
-
supports simultaneous display of up to 8 channels
-
Video Output
-
HDMI output resolution: 1920 × 1080 @ 60 Hz
Interfaces
-
Serial:
-
1 × RS-232 (DB9, reserved)
-
1 × RS-485 (half-duplex, reserved)
-
-
HDMI:
-
1 × HDMI 1.3
-
-
Network:
-
1 × 10M/100M adaptive Ethernet interface (RJ45)
-
-
Audio:
-
1 × 3.5 mm audio jack (reserved)
-
-
Power:
-
DC 12V power interface
-
Hardware / Environmental
-
Power consumption: < 15W
-
Operating temperature: -10°C to 40°C
-
Operating humidity: 10% to 90% RH, non-condensing
-
Storage temperature: -40°C to 60°C
Physical
-
Dimensions (W × H × D): 449.7 × 115.4 × 178.6 mm
-
Net weight: 1.4 kg
| Weight | 4 lbs |
|---|
