Features
Embedded Linux OS ensures 24/7 stable operation and prevents hackers and viruses.
Dual HDMI simultaneous video output, maximum resolution of HDMI 1 is 8K
Supports decoding 1-ch 8K@60, 2-ch 8K@30, 8-ch 12MP@20, 8-ch 4K@30, 32-ch 1080P@30, and 64-ch 720P@30 videos in parallel.
Supports decoding video in H.265, H.264, MPEG4, and MJPEG formats.
Supports decoding video in 8K, 12MP, 4K, 1080P, 720P, and D1 resolutions, compatible with IPC streams from mainstream
manufacturers in the industry.
Up to 8K (7680*4320) @60Hz output resolution, compatible with mainstream display devices in the industry.
Supports decoding audio in G711.A and G711.U formats.
Supports up to 64 split screens for a single video output.
Allows users to configure and manage the device on a central server, supports GB/T28181 and standard ONVIF.
Supports synchronizing time with server by schedule.
Supports high/low-temperature alarm.
-
Video Format: H.265, H.264, MPEG4, MJPEG
-
Decoding resolution: Up to 8K
-
Decoding capability:
-
1-ch 8K@60fps、2-ch 8K@30fps、8-ch 12MP@20fps、8-ch 3840*2160@30fps、32-ch 1080P@30fps、64-ch 720P@30fps
-
-
Split screen: Up to 64
Output
-
Video outputs:
-
2 × HDMI
-
1 × VGA
-
1 × SDI
-
Video output resolution
-
HDMI:
7680 × 4320 @ 60 Hz, 7680 × 4320 @ 30 Hz, 3840 × 2160 @ 60 Hz, 3840 × 2160 @ 30 Hz, 1920 × 1200 @ 60 Hz, 1920 × 1080 @ 60 Hz, 1920 × 1080 @ 50 Hz, 1660 × 1200 @ 60 Hz, 1440 × 900 @ 60 Hz, 1366 × 768 @ 60 Hz, 1280 × 1024 @ 60 Hz, 1280 × 720 @ 60 Hz, 1280 × 720 @ 50 Hz, 1024 × 768 @ 60 Hz -
VGA:
1920 × 1200 @ 60 Hz, 1920 × 1080 @ 60 Hz, 1920 × 1080 @ 50 Hz, 1660 × 1200 @ 60 Hz, 1440 × 900 @ 60 Hz, 1366 × 768 @ 60 Hz, 1280 × 1024 @ 60 Hz, 1280 × 720 @ 60 Hz, 1280 × 720 @ 50 Hz, 1024 × 768 @ 60 Hz -
SDI:
1920 × 1080 @ 60 Hz, 1920 × 1080 @ 50 Hz, 1280 × 720 @ 60 Hz, 1280 × 720 @ 50 Hz
Audio
-
Audio decoding: G.711A, G.711U
-
Audio I/O: 1 input / 1 output

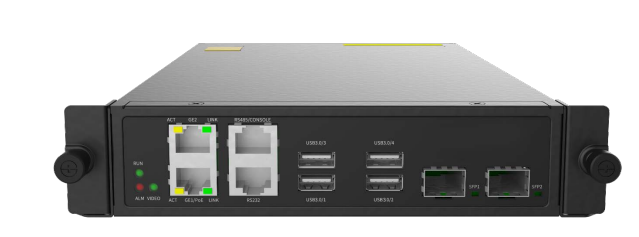

Network / interfaces
-
Network ports: 2 × RJ45 10/100/1000M, 2 × SFP slots
-
USB: 4 × USB 3.0
-
Serial: 2 × RS485, 1 × RS232
-
Alarm I/O: 4 alarm in / 3 alarm out
Protocol / compatibility
-
Supported protocols: ONVIF, GB/T28181
-
IP camera compatibility: ONVIF-compatible cameras / mainstream IPC streams
Power / physical
-
Power supply: 12V DC
-
Power consumption: 15W max / <15W depending on listing
-
Dimensions: 277 × 40 × 191 mm
-
Weight: 2 kg / 4.4 lb
