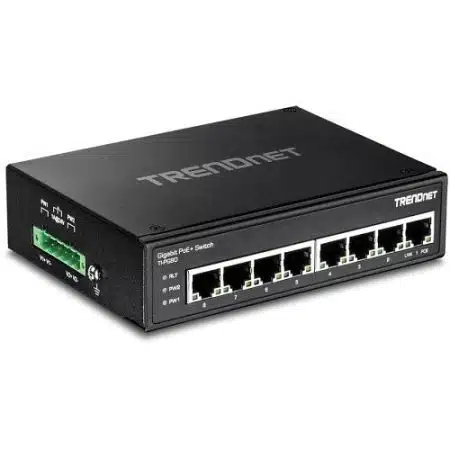

TRENDnet TI-PG80 8-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch,
ETHERNET PORT INTERFACE: 8 x Gigabit PoE+ Ethernet ports
FULL POE+ POWER BUDGET & SWITCHING CAPACITY: The Gigabit PoE+ switch supplies up to 30 Watts of PoE / PoE+ power per port with a 200 Watt PoE power budget and allows for a 16 Gbps switching capacity.
DIN-RAIL & WALL MOUNT KIT: This 8-Port Gigabit PoE+ network switch comes with an integrated DIN-Rail mount and mounting
$334.89
Main Features
- ETHERNET PORT INTERFACE: 8 x Gigabit PoE+ Ethernet ports
- FULL POE+ POWER BUDGET & SWITCHING CAPACITY: The Gigabit PoE+ switch supplies up to 30 Watts of PoE / PoE+ power per port with a 200 Watt PoE power budget and allows for a 16 Gbps switching capacity.

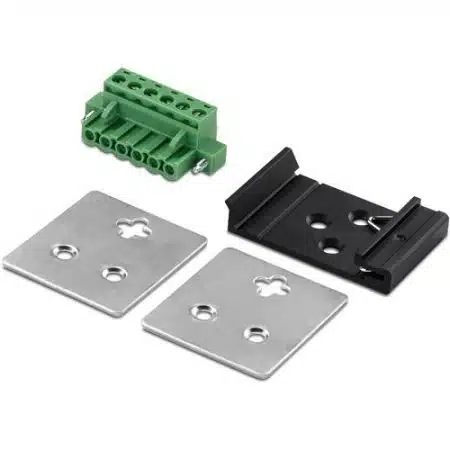

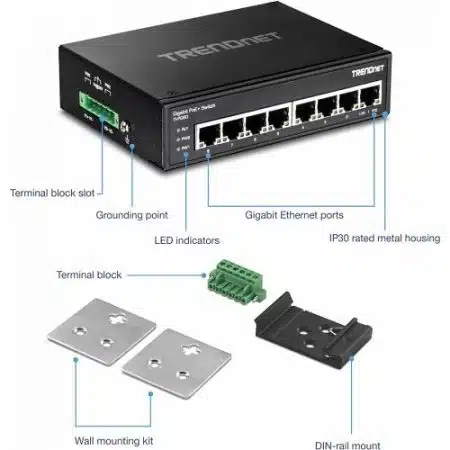

- DIN-RAIL & WALL MOUNT KIT: This 8-Port Gigabit PoE+ network switch comes with an integrated DIN-Rail mount and mounting hardware.
- EXTREME TEMPERATURE SWITCH: The metal hardened IP30 rated Gigabit PoE+ Ethernet switch is equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD/EMI/surge, and operate with a wide temperature range (- 40 – 75 °C (- 40 – 167 °F)) for harsh environments.
- REDUNDANT POWER: The 8 port switch has dual redundant power inputs with overload current protection (power supply sold separately: model: (TI-S24048)
- TRENDnet LIFETIME PROTECTION: All metal TRENDnet switches come with lifetime manufacturer protection.
- Powers supply sold separately (Model TI-S24052, TI-S24048)
| Specifications | |||||||||||||||
| Part Number | TI-PG80 | NDAA Compliant | Yes | Product Condition | New | Product Line | Industrial | Product Model | TI-PG80 | Product Name | 8-port hardened Industrial Gigabit PoE+ Switch | Product Series | TI | Product Type | Ethernet Switch |
| Technical Information | |||||||||||||||
| Media Type Supported | Twisted Pair | Network Switch Type | Unmanaged | Power Consumption | 5.76W | ||||||||||
| I/O Expansions | |||||||||||||||
| Shared SFP Slot | No | ||||||||||||||
| Interfaces/Ports | |||||||||||||||
| Modular | No | Port/Expansion Slot Details | 8 x Gigabit Ethernet Network | Stack Port | No | Total Number of Network Ports | 8 | Uplink Port | No | ||||||
| Management & Protocols | |||||||||||||||
| Manageable | No | ||||||||||||||
| Media & Performance | |||||||||||||||
| Network Technology | 1000Base-T | ||||||||||||||
| Network & Communication | |||||||||||||||
| Ethernet Technology | Gigabit Ethernet | Layer Supported | 2 | Networking Standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x | ||||||||||
| Physical Characteristics | |||||||||||||||
| Depth | 7" | Form Factor | Rail Mount, Wall Mount | Height | 3" | Material | Metal | Weight (Approximate) | 14.96 oz | Width | 5" | ||||
| Power Description | |||||||||||||||
| Input Voltage | 48-56V DC | PoE (RJ-45) Port | No | PoE Budget | 200W | Power Source | Power Supply | Redundant Power Supply Supported | Yes | ||||||
| Warranty | |||||||||||||||
| Limited Warranty | Lifetime | ||||||||||||||
| Miscellaneous | |||||||||||||||
| Environmentally Friendly | Yes | Package Contents | DIN-Rail / wall mount kit, Quick Installation Guide, Removable terminal block, TI-PG80 | TAA Compliant | Yes | ||||||||||
| Weight | 1 lbs |
|---|
