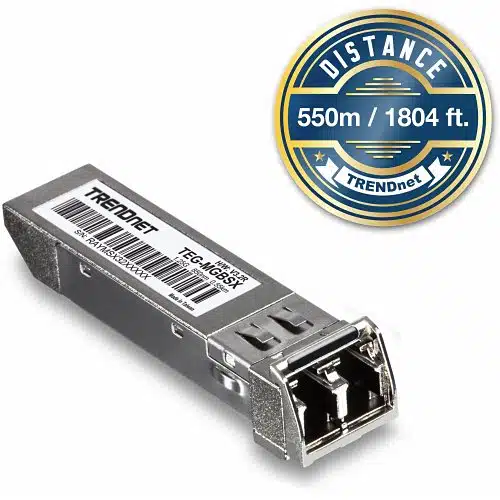

Transmission distance of up to 550m (1804 ft.)
Supports data rates of up to 1.25Gbps
Compliant with IEEE 802.3z Gigabit
$21.99
| Specifications | |||||||||||||
| Part Number | TEG-MGBSX | NDAA Compliant | Yes | Product Condition | New | Product Model | TEG-MGBSX | Product Name | Mini GBIC Multi-mode SX Module | Product Series | SFP | Product Type | SFP (mini-GBIC) |
| Technical Information | |||||||||||||
| Media Type Supported | Optical Fiber | ||||||||||||
| I/O Expansions | |||||||||||||
| Expansion Slot Type | SFP (mini-GBIC) | ||||||||||||
| Interfaces/Ports | |||||||||||||
| Connector Type | LC | Interfaces/Ports Details | 1 x LC Duplex 1000Base-SX | Total Number of Ports | 1 | ||||||||
| Media & Performance | |||||||||||||
| Fiber Mode Supported | Multimode | Fiber Optic Cable Standard | 850 nm | Maximum Distance Supported | 1804.46 ft | Network Technology | 1000Base-SX | ||||||
| Network & Communication | |||||||||||||
| Ethernet Technology | Gigabit Ethernet | ||||||||||||
| Physical Characteristics | |||||||||||||
| Application/Usage | Data Networking | Depth | 5" | Form Factor | Hot-pluggable | Height | 3" | Weight (Approximate) | 0.39 lb | Width | 3" | ||
| Power Description | |||||||||||||
| Input Voltage | 3.3V DC | ||||||||||||
| Warranty | |||||||||||||
| Limited Warranty | 3 Year Lifetime | ||||||||||||
| Miscellaneous | |||||||||||||
| Compatibility | This Module is for industry standard SFP slot | Package Contents | Quick installation guide, TEG-MGBSX | TAA Compliant | Yes | ||||||||
| Weight | 2 lbs |
|---|
