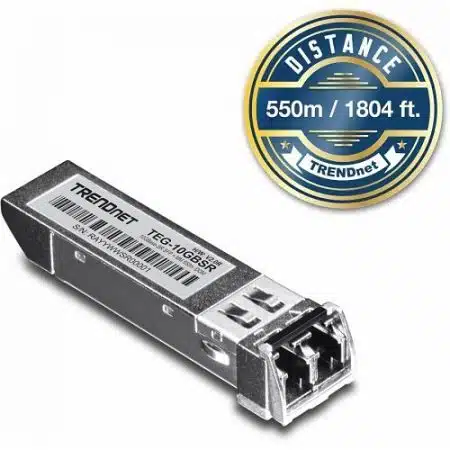

TRENDnet TEG-10GBSR 10GBASE-SR SFP+ Multi Mode LC Module 550m with
Supported throughput up to 10.5 Gbps with Multi Mode fiber for distances up to 300 m (984 feet)
Operating temperature: 0 to 70 °C (32 to 158 °F)
850 nm
$46.43
Main Features
- Supported throughput up to 10.5 Gbps with Multi Mode fiber for distances up to 300 m (984 feet)
- Operating temperature: 0 to 70 °C (32 to 158 °F)
- 850 nm wavelength
- Single 3.3 V power supply
- Hot-pluggable SFP+ transceiver
- Duplex LC connector
- SFP+ MSA compliant
- Digital Diagnostics Monitoring (DDM) support
- NDAA / TAA compliant (U.S. and Canada only)
| Specifications | |||||||||||||
| Part Number | TEG-10GBSR | Packaged Quantity | 1 | Product Condition | New | Product Model | TEG-10GBSR | Product Name | 10GBASE-LR SFP+ Multi-Mode LC Module (400M with DDM) | Product Series | SFP | Product Type | SFP+ |
| Technical Information | |||||||||||||
| Media Type Supported | Optical Fiber | ||||||||||||
| Certifications | |||||||||||||
| NDAA Compliant | Yes | TAA Compliant | Yes | ||||||||||
| I/O Expansions | |||||||||||||
| Expansion Slot Type | SFP+ | ||||||||||||
| Interfaces/Ports | |||||||||||||
| Connector Type | LC | Interfaces/Ports Details | 1 x LC Duplex 10GBase-SR Network | Total Number of Ports | 1 | ||||||||
| Media & Performance | |||||||||||||
| Fiber Mode Supported | Multimode | Fiber Optic Cable Standard | 850 nm | Maximum Distance Supported | 984.25 ft | Network Technology | 10GBase-SR | ||||||
| Network & Communication | |||||||||||||
| Ethernet Technology | 10 Gigabit Ethernet | ||||||||||||
| Physical Characteristics | |||||||||||||
| Application/Usage | Data Networking, Optical Network | Depth | 8" | Form Factor | Hot-swappable | Height | 3" | Weight (Approximate) | 0.68 lb | Width | 5" | ||
| Warranty | |||||||||||||
| Limited Warranty | 3 Year Lifetime | ||||||||||||
| Miscellaneous | |||||||||||||
| Compatibility | MSA Compliant | Environmental Certification | RoHS, WEEE | Environmentally Friendly | Yes | Package Contents | TEG-10GBSR | ||||||
| Weight | 2 lbs |
|---|
