Tempo OPM210 Micro Optical Power Meter, Standard Power OPM with VFL, -70 to
Standard and High Power Optical Power Meters
Measure Optical Power ( dB, dBm & mW)
Accurate Insertion Loss
$368.76
Product Overview

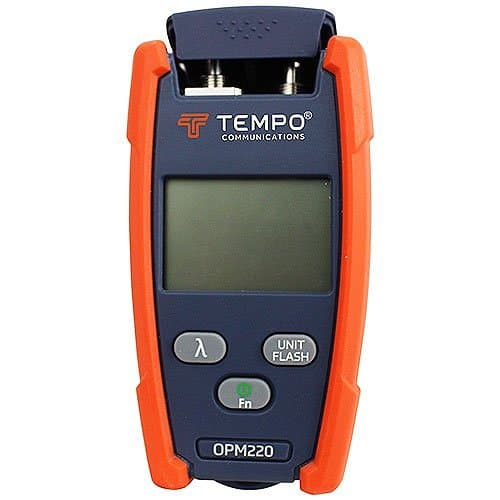

The Tempo Communications Micro Optical Power Meters (OPM210 and OPM220) are available in standard and high-power versions for the Telco and MSO markets. Absolute and referenced power measurements ensure fast and accurate loss budget and insertion loss measurements. When placing tones on the fiber using a Tempo Communications source provides the optical power meter will definitively identify fiber optic cables.
Main Features
- Standard and High Power Optical Power Meters
- Measure Optical Power ( dB, dBm & mW)
- Accurate Insertion Loss Measurements
- Tone and Probe Fiber Networks at 270Hz, 1kHz and 2kHz
- Absolute or Referenced Optical Power Measurements
- Integrated Visual Fault Locator
- Integrated Flash Light
- InGaAs detector for Maximum Sensitivity
- Calibrated Wavelengths 850nm, 1300nm, 1310nm, 1490nm, 1550nm & 1625nm
- Universal Bulkheads
Specifications | |||||||||
Part Number | OPM210 | Packaged Quantity | 1 | Product Model | OPM210 | Product Name | Micro Optical Power Meter | Product Type | Fiber Optic Power Meter |
Technical Information | |||||||||
Device Function | Fiber Optic Cable Testing, Insertion Loss Measurement, Tone Detection, Visual Fault Locator | Media Type Supported | Optical Fiber | ||||||
Battery Information | |||||||||
Battery Chemistry | Alkaline | Battery Size Supported | AAA | Number of Batteries Supported | 200% | ||||
Physical Characteristics | |||||||||
Depth | 1.1" | Height | 4.2" | Weight (Approximate) | 3.74 oz | Width | 2.3" | ||
Miscellaneous | |||||||||
Environmental Certification | RoHS, RoHS 3, WEEE | Environmentally Friendly | Yes |
Weight | 2 lbs |
---|
