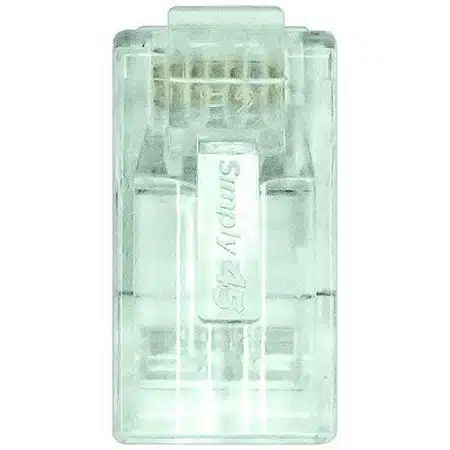

Simply45 S45-1601P Pro Series CAT6 Unshielded, Pass-Through RJ45 with Cap45, Clamshell
3 Prong Pin Design with 50µ of True 24ct Gold Plating
Solid and Stranded LAN Cables
Straight-Line Wire
$62.72
Product Overview

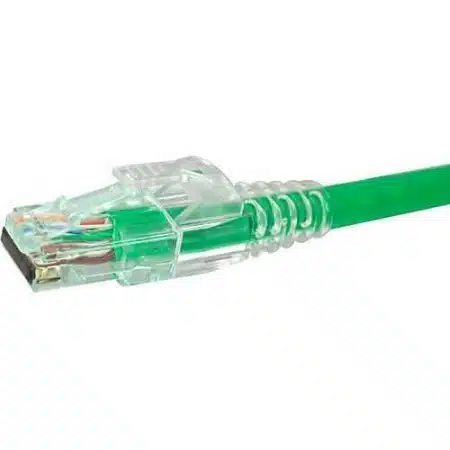

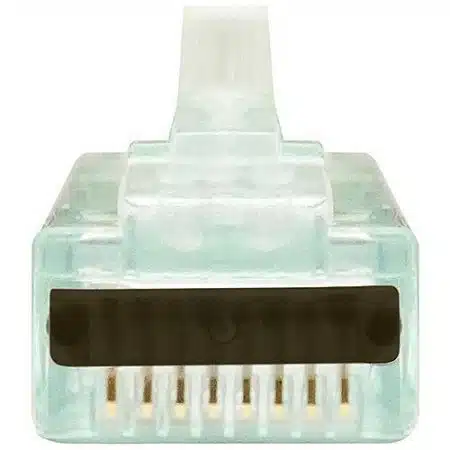

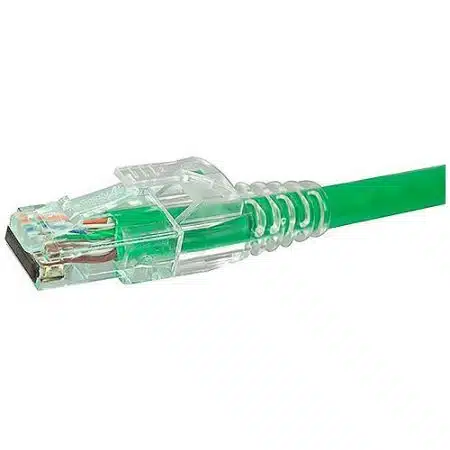

Simply45® is the industry-leading brand for RJ45 modular plug innovation and performance solutions. Our S45-1601P is the same as our S45-1600P except is packaged in a convenient 50-piece plastic clamshell. The Simply45® ProSeries introduces the exclusive Cap45® (PATENT 10,811,831 B1). Cap45® is an isolation cap/bar that snaps onto the front of the pass-through RJ45 plug after termination, covering the exposed wire ends. Cap45® prevents electrical shorting in the RJ45 socket due to improperly trimmed wires or in device sockets that may not be 100% compliant. With Cap45®, any electrical risks associated with exposed wire ends are now eliminated completely. Cap45® is a MUST-HAVE for all pass-through RJ45 modular plugs used in commercial and certified system terminations.
Main Features
- 3 Prong Pin Design with 50µ of True 24ct Gold Plating
- Solid and Stranded LAN Cables
- Straight-Line Wire Insert
- Improved Crosstalk Performance
- Crimp Tool Compatibility-S45-C100 or S45-C101
- Color Tinted RJ45 Modular Plugs
- cUL Listed, PoE/PoH Rated
- Compliant with Industry Standards: ANSI/TIA 568.2-D Class E, 1096-A; ISO/IEC 11801 Class E, 60603-7, 8877:1992; FCC
| Specifications | |||||||||||||||
| Part Number | S45-1601P | Packaged Quantity | 50 | Packing | Jar | Product Line | Simply45 | Product Model | S45-1601P | Product Name | PRO Network Connector | Product Series | PROSeries | Product Type | Network Connector |
| Technical Information | |||||||||||||||
| Connector Details | 1 x RJ-45 Network Male | Connector Plating | Gold, Nickel | Contact Plating | Gold | Network Category Type | Category 6 | Shielding | No | ||||||
| Interfaces/Ports | |||||||||||||||
| Connector Type | RJ45 Network Male | Number of Contacts | 8 | ||||||||||||
| Physical Characteristics | |||||||||||||||
| Color | Green | Weight (Approximate) | 4 oz | ||||||||||||
| Warranty | |||||||||||||||
| Limited Warranty | Lifetime | ||||||||||||||
| Miscellaneous | |||||||||||||||
| Environmental Certification | RoHS | Environmentally Friendly | Yes | Features | 3 Prong Contact, 50µ Gold, Color Tinted, Crosstalk Protection, Far End Cross Talk (FEXT), Fire Retardant, HDBaseT, Near End Cross Talk (NEXT), Plenum, PoE, PoE+, PoE++, Polycarbonate, Solid, Stranded | Package Contents | PRO Network Connector | TAA Compliant | Yes | ||||||
| 55 x Cap45 | |||||||||||||||
| Weight | 2 lbs |
|---|
