Product Overview

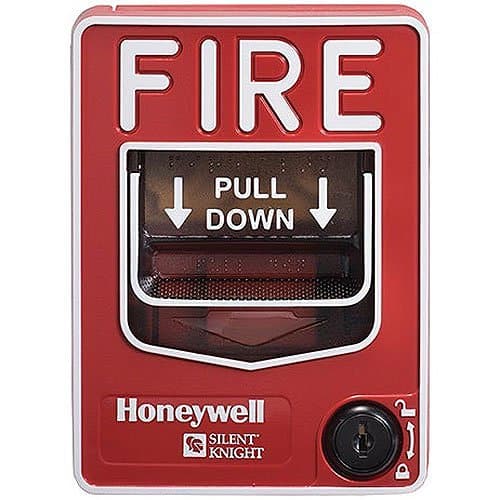

The SK-PULL-SA is a single action pull station requiring only one motion to activate the station. The SK-PULL-DA is a dual action pull station requiring two motions to active the station. The SK-PULL-SA and SK-PULL-DA are for use with Honeywell Silent Knight Series fire control panel (FACP).
Extremely easy to operate, the SK-PULL-DA and SK-PULL-SA provide a fast and practical means of manually initiating a fire alarm signal. The FACP recognizes each manual pull station by its specific address saving precious seconds in determining the location of an alarm.
INSTALLATION
The SK-PULL-SA and SK-PULL-DA can be surface mounted to an SB-I/O surface back box or semi-flush mounted on a standard single-gang with a minimum depth of 2.13″(5.40 cm) or double gang or 4″ (10.61 cm) square electrical box. You can also use the optional (System Sensor® PN BG-TR) trim ring if the station is being semi-flush mounted.
Main Features
- Installer can open station without causing an alarm condition
- Dual-color LED is visible through handle of station
- Key operated test and reset lock using lock plate actuator
- Key matches compatible FACP locks
- Meets ADA requirement for 5 lbs maximum pull force to active
- Meets the Americans with Disabilities Act Accessibility Guidelines (ADAAG) controls and operating mechanisms guidelines (Section 4.1.3[13])
- Shell, door, and handle molded from durable LEXAN
- Reliable analog communications for trouble-free operation
- Braille text on station handle
- Rotary address switches for fast installation
Specifications | |||||||||||
Part Number | SK-PULL-SA | Product Model | SK-PULL-SA | Product Name | SK-PULL-SA Pull Station | Product Series | SK-Pull | Product Type | Pull Station | ||
Technical Information | |||||||||||
Pull Station Type | Single Action | ||||||||||
Environmental Conditions | |||||||||||
Maximum Operating Temperature | 120°F (48.9°C) | Minimum Operating Temperature | 32°F (0°C) | ||||||||
Physical Characteristics | |||||||||||
Application/Usage | Fire Alarm | Depth | 1.5" | Durability | Durable | Height | 5.5" | Material | Lexan, PC | Width | 4" |
Power Description | |||||||||||
Input Voltage | 15V DC, 32V DC | ||||||||||
Product Information | |||||||||||
Print/Message | FIRE, Pull Down | ||||||||||
Miscellaneous | |||||||||||
Compatibility | Silent Knight Fire Alarm Control Panels: 6820 6820EVS 6808 6700 5700 5808 5820XL 5820XL-EVS | Features | Key Lock, Key Reset, LED Indicator, Single Pole |
Weight | 2 lbs |
---|
