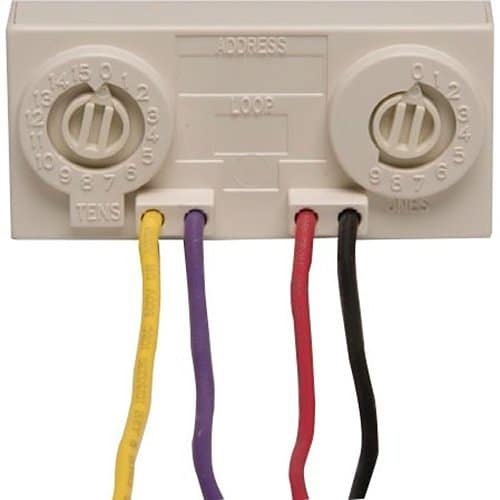

Silent Knight SK-MINIMON Addressable Mini Monitor Module for
Single contact monitor
Support for Class B (Style B) contact monitor wiring
Small and lightweight size allows for flexible mounting
$123.27
Product Overview
The SK-MINIMON is an addressable monitor modules for use with the Honeywell Silent Knight fire alarm control panels (FACPs). The SKMINIMON acts as an interface to contact devices, such as waterflow switches and pull stations. The SK-MINIMON supports Class B supervised wiring to the load device. Conventional 4-wire smoke detectors can be monitored for alarm and trouble conditions
The SK-MINIMON can be mounted in a single gang junction box directly behind the monitored device. Its small size and light weight allow it to be installed without rigid mounting requirements.
INSTALLATION
The SK-MINIMON can be mounted in a single gang junction box directly behind the monitored device. Its small size and light weight allow it to be installed without rigid mounting requirements.
Main Features
- Single contact monitor
- Support for Class B (Style B) contact monitor wiring
- Small and lightweight size allows for flexible mounting options
- Rotary address switches for fast installation
Specifications | |||||||
Part Number | SK-MINIMON | Product Model | SK-MINIMON | Product Name | SK-MINIMON Intelligent Mini Monitor Module | Product Type | Alarm Control Panel Monitor Module |
Technical Information | |||||||
Device Supported | Control Panel | ||||||
Environmental Conditions | |||||||
Maximum Operating Temperature | 120°F (48.9°C) | Minimum Operating Temperature | 32°F (0°C) | ||||
Physical Characteristics | |||||||
Depth | 0.5" | Height | 1.3" | Weight (Approximate) | 1.20 oz | Width | 2.8" |
Power Description | |||||||
Input Voltage | 32V DC | ||||||
Miscellaneous | |||||||
Compatibility | 5700: Addressable fire alarm control panel, 5808: Addressable fire alarm control panel, 5820XL: Addressable fire alarm control panel, 5820XL-EVS: Addressable fire alarm control panel with an emergency voice system, 6700: Addressable fire alarm control panel, 6808: Addressable fire alarm control panel, 6820: Addressable fire alarm control panel, 6820EVS: Addressable fire alarm control panel with an emergency voice system., Honeywell Silent Knight fire alarm control panels: |
Weight | 2 lbs |
---|
