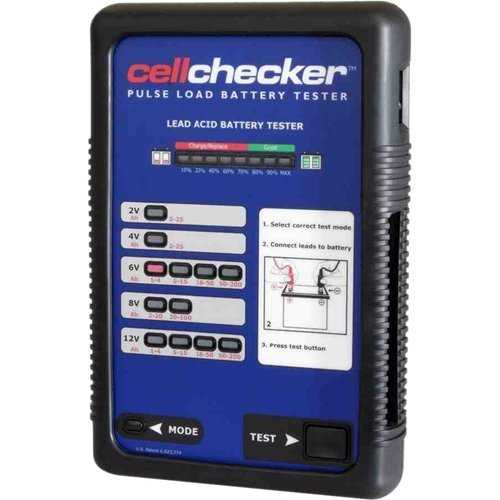

SDi CELL03 Lead Acid Pulse Load Battery
Tests battery condition – quickly and easily identifiesWeak or failing batteries
Simple to operate, genuine Pulse Load testing with test results in 15 seconds
Tests 2V, 4V, 6V, 8V or 12V batteries up to
$948.08
Product Overview

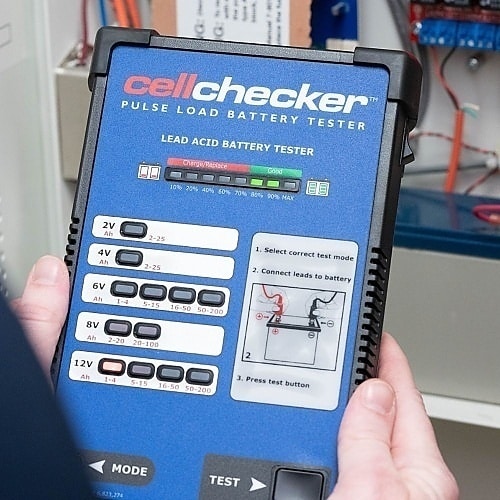

Cell Checker is ideal for testing fire and security alarm systems. Using pulse load technology it provides a comprehensive test of a battery’s state of charge and condition. Battery voltage alone is not a reliable parameter for determining remaining capacity and condition; it also does not indicate whether the battery will be able to deliver power when placed under load. Rather than simply displaying a voltage reading, Cell Checker determines a battery’s remaining power capacity by measuring its ability to maintain voltage levels while under load.
Main Features
- Tests battery condition – quickly and easily identifies weak or failing batteries
- Simple to operate, genuine Pulse Load testing with test results in 15 seconds
- Tests 2-volt, 4-volt, 6-volt, 8-volt or 12-volt batteries up to 200AH
- Tests SLA batteries
- Tests battery performance – not just voltage/internal resistance
- Lead-calcium batteries can be tested with CellChecker however, testing the larger stationary 2V flooded lead acid batteries is not recommended
| Specifications | |||||||||||
| Part Number | CELL03 | Product Line | Checker | Product Model | CELL03 | Product Name | CELL03 Cellchecker Battery Tester | Product Series | Checker | Product Type | Battery Testing Device |
| Technical Information | |||||||||||
| Device Function | Battery Test | ||||||||||
| Battery Information | |||||||||||
| Battery Size Supported | 200 Ah | ||||||||||
| Weight | 2 lbs |
|---|
