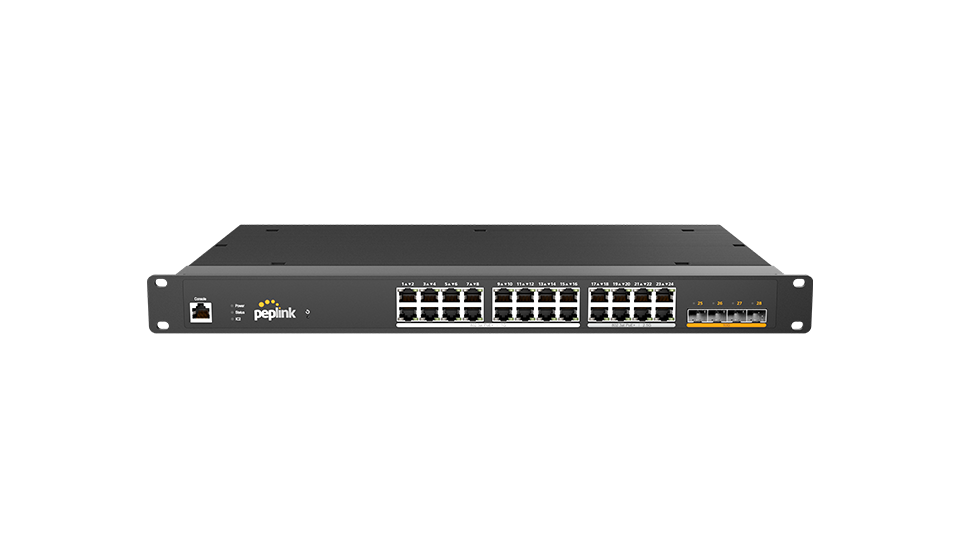

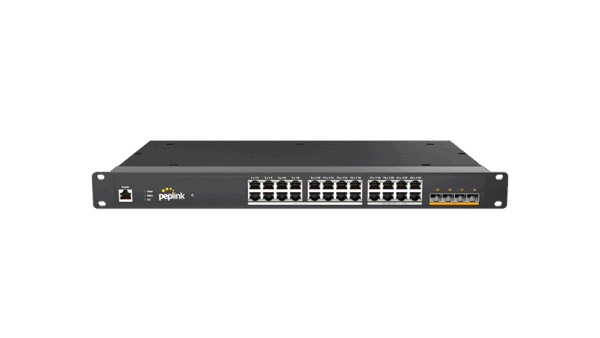

24 PoE 2.5G Switch Rugged
• Ruggdized Encolure with a fanless design for industrial environments.
• 16x 1GE (802.3at PoE+) RJ45 ports
• 8x 2.5GE (802.3at PoE+) RJ45 ports
• 4x 10GE SFP+ ports
• 250W PoE power budget
Interface
-
16x 1GE | 802.3at PoE+
-
8x 2.5GE | 802.3at PoE+
-
4x 10G
Switch Capacity
-
152 Gbps
Max. Packet Forwarding Rate
-
216 Mpps
MAC Address Table
-
16,000 entries
Power Supply
-
1x External PSU (300W)
Power Input
-
AC Input: 100–240V, 4A
-
DC Output: 54V, 5.56A
-
2x Power DIN: 54V DC
-
1x Terminal Block: 12V–54V DC
Power Consumption
-
38W (System)
Total PoE Power Budget
-
250W
Dimensions (D x W x H)
-
10.5 x 19.1 x 1.8 inches (265 x 485 x 45 mm)
Weight
-
11.3 lbs (5.1 kg)
Operating Temperature
-
-40° – 149°F / -40° – 65°C
Humidity
-
15% – 95% (non-condensing)
Certifications
-
FCC, CE, RoHS
Warranty
-
1-Year Limited Warranty
Package Content
-
1x 24 PoE 2.5G Switch Rugged
-
1x Power Cord
-
1x 300W PSU
-
1x Screw Set
-
1x Rubber Foot Pad Set
Management / Configuration
-
InControl
| Weight | 12 lbs |
|---|
