- Multi-Cellular Router (4 WAN)
- 1x USB, 1x Ethernet,
- 2x Embedded 4G LTE Modem (for use in Mexico)
- Full Antenna Set
Interfaces
- WAN: 1x Gigabit Ethernet, 1x USB, 2x Embedded LTE Modems with Redundant SIM Slots
- LAN: 2x Gigabit Ethernet
Cellular
- LTE Modem Downlink/Uplink: 100 Mbps / 50 Mbps
- LTE-A Modem Downlink/Uplink: 300 Mbps / 50 Mbps
- SIM Slots: 4x Redundant SIM Slots (2 per modem)
Performance
- Router Throughput: 300 Mbps
- Recommended Users: 150
Antennas & Connectors
- 4x SMA Cellular Antenna Connectors
- 1x SMA GPS Antenna Connector
Power
- DC Input: 10V–56V DC (Jack or Terminal Block)
- AC Adapter: AC 100V–240V / DC 12V 3A
- PoE Input: 802.3at PoE
- PoE Output: Up to 2x 802.3at (PoE Kit sold separately)
- Max Power Consumption: 15W
Physical
- Dimensions: 5.8 x 5.0 x 1.6 inches / 147 x 128 x 40 mm
- Weight: 0.96 lbs / 0.5 kg
- Operating Temperature: -40° to 149°F / -40° to 65°C
- Humidity: 15%–95% (non-condensing)
Certifications
FCC, CE, RoHS, E-Mark, IC, EN 61373:1999 / IEC 61373:1999 (Shock & Vibration), EN 50155 (Railway Applications), EN 61000 (Electromagnetic Compatibility), ITU-T K.20 ±1.5kV (RF Port Lightning Immunity)
In the Box

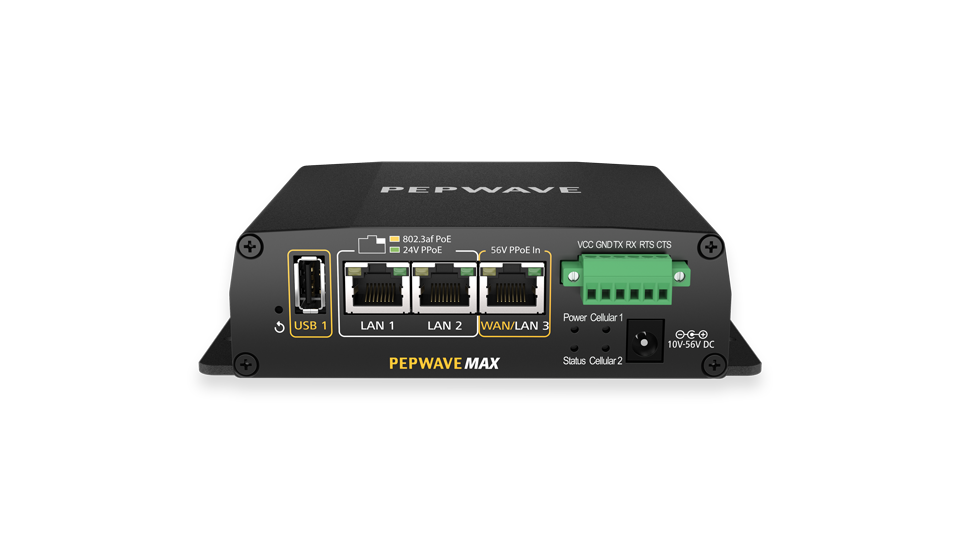

- 1x MAX HD2 Mini unit
- 1x 12V 3A Power Supply (ACW-602)
- 1x GPS Antenna (ACW-232)
- 2x LTE Antennas (ACW-815)
| Weight | 2 lbs |
|---|
