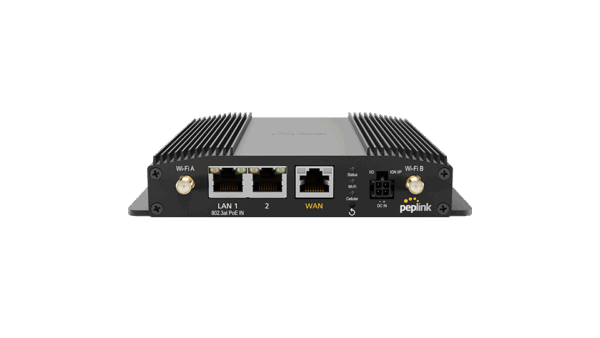

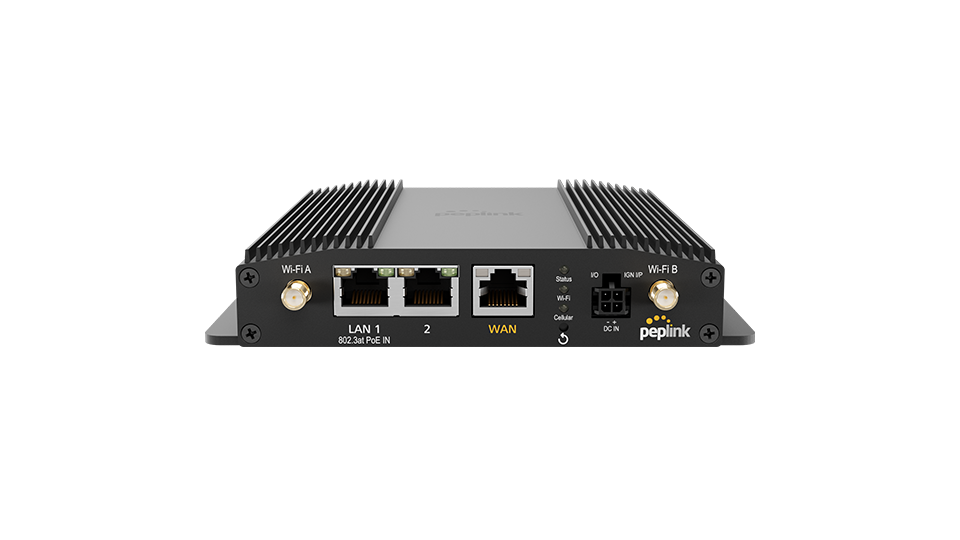

Peplink MAX-BR1-PRO-5GK-T-PRM MAX BR1 Pro 5G

Modem & Cellular

• Embedded Modem: 1x 5G
• Region: Global (US Carrier Certifications: AT&T, T-Mobile, Verizon C-Band, FirstNet)
• LTE Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
• 5G Bands (NSA & SA Sub-6GHz): n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79
• Cellular Data Rate (max theoretical): 5G: 4.1 Gbps down / 900 Mbps up; CAT-20: 2 Gbps down / 211 Mbps up

Interfaces

• WAN: 1x 10/100/1000/2500M Ethernet + 1x Embedded Cellular Modem with redundant SIM slots
• LAN: 2x 10/100/1000M Ethernet (with surge and ESD protection)
• Wi-Fi: Simultaneous Dual-Band (2.4 GHz / 5 GHz) Wi-Fi 6, 2x2 MU-MIMO (Wi-Fi WAN and/or AP)

Performance

• Router Throughput: 1 Gbps
• SpeedFusion Throughput (No Encryption): 400 Mbps
• SpeedFusion Throughput (256-bit AES): 200 Mbps
• Recommended Users: 1–150
• SpeedFusion VPN Peers: 2 (expandable to 5 with PrimeCare, or 10/20 with software license)

Physical

• Dimensions: 5.78 x 5.08 x 1.15 inches / 146.8 x 129 x 29.3 mm
• Weight: 1.5 lbs / 680 g
• Operating Temperature: -40° to 149°F / -40° to 65°C
• Humidity: 15%–95% (non-condensing)

Power

• AC Adapter: AC Input 100V–240V / DC Output 12V
• Power Port: 10V–30V DC (with ignition sensing)
• Power Consumption: 8W nominal / 19W max

Antennas & Connectors

• 4x SMA Cellular Connectors
• 2x RP-SMA Wi-Fi Antenna Connectors
• 1x SMA GPS Antenna Connector

SIM Options

• Nano-SIM (4FF)
• Peplink eSIM
• BYO eSIM (2 profiles, requires Firmware 8.4.0+)
• RemoteSIM from SIM Injector (hardware v2+)
• FusionSIM (hardware v2+)

AP Controller

• Type: Standard
• Max Controlled APs / Switches: 30 (expandable to 50 with license add-on AP-LC-50)

Certifications

FCC, CE, RoHS, E-Mark, EN61373 (Shock & Vibration), EN50155 (Railway), EN61000 (EMC), EN45545-2 (Railway Fire Protection), MIL-STD-810H Method 514.8

In the Box

• 1x BR1 Pro 5G unit
• 4x LTE/5G Antennas (ACW-235)
• 2x Dual Band Wi-Fi Antennas (ACW-341)
• 1x GPS Active Antenna (ACW-232)
• 1x 12V 2A 4-Pin Power Supply (ACW-632)

Warranty

1-Year Limited Warranty
