- Extreme Performance Multi-WAN Router
- Designed for Enterprise/Datacenter
- 2x 1TB SSD
- 70 Gbps throughput
- Up to 8 x 10/100/1000/2500M Ethernet WAN
- Up to 9 x 10/100/1000/2500M Ethernet LAN
- Up to 8 x 25G SFP28 WAN/LAN
- Up to 2 x 40G QSFP+ WAN/LAN
- 2x USB WAN
- Dual Power Supplies
WAN Interface
-
Up to 8 x 10/100/1000/2500M Ethernet
-
Up to 8 x 25G SFP28
-
Up to 2 x 40G QSFP+
LAN Interface
-
2 x USB Interface
-
Up to 9 x 10/100/1000/2500M Ethernet
-
Up to 8 x 25G SFP28
-
Up to 2 x 40G QSFP+
Router Throughput
-
70 Gbps
SpeedFusion VPN Throughput
-
No Encryption: 30 Gbps
-
256-bit AES: 30 Gbps
Recommended Users
-
10,000 – 20,000+
Number of SpeedFusion VPN Peers
-
4,000
Maximum Number of AP Supported
-
2,000
SpeedFusion Features
-
Hot Failover
-
Smoothing
-
Bandwidth Bonding
Central Management
-
InControl 2
Drop-In Mode
-
Yes
High Availability
-
Yes
Content Filtering
-
Full
Peplink AP Series Management
-
Yes
Remote AP & Multiple Config Profiles Management
-
Yes
Edge Computing
-
2 x 1TB SSD
LAN Bypass
-
Yes (x2)
Remote User Access
-
Yes
LACP (802.3ad) NIC Bonding
-
Yes
Dual Hot Swap Power Supply
-
Yes
1U Rack-mount
-
Yes
Power Input
-
AC Input 110V – 220V
Power Consumption
-
196W (nominal), 596W (max.)
Dimensions
-
17.2 x 25.6 x 1.73 inches / 438 x 650 x 44 mm
Weight
-
52.8 lbs / 24 kg
Operating Temperature
-
32° – 104° F / 0° – 40° C
Humidity
-
10% to 90% (non-condensing)
Certifications
-
FCC, CE, RoHS
Package Content
-

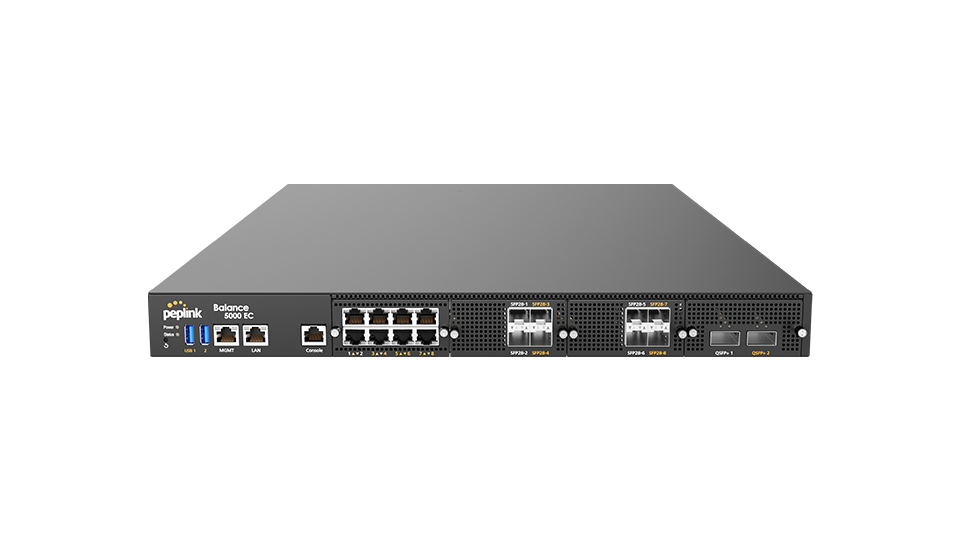

1x Balance 5000 EC (40G)
-
2x Power Cords
-
1x Ethernet Cable
-
1x Rack Mount Rails
-
1x Short Ear Rack Mount Kit with screws
-
1-Year Limited Warranty
| Weight | 55 lbs |
|---|
