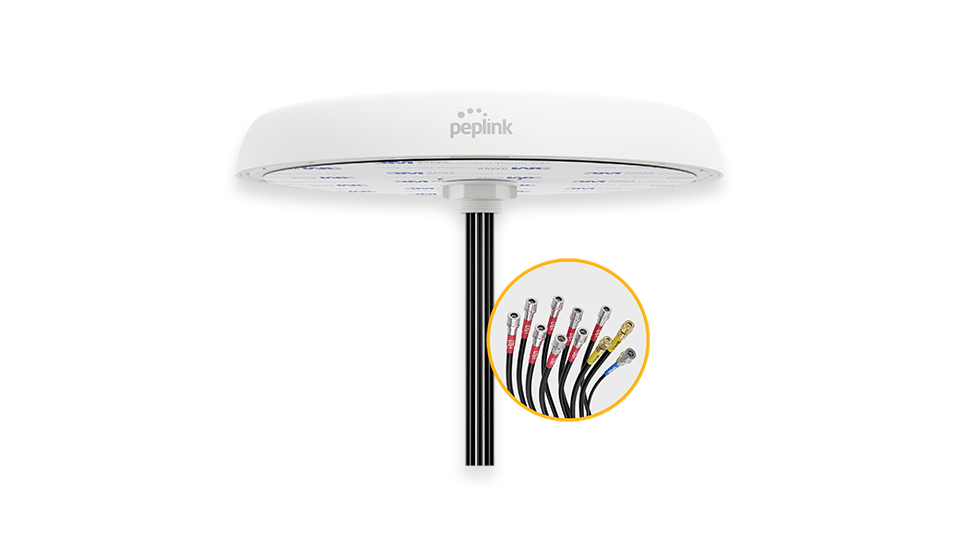

Peplink ANT-MB-82G-Q-W-6 Mobility 82G

Cellular Antenna

• Antenna Elements: 8
• Peak Gain & Frequencies:
  • 5.4 dBi @ 617–960 MHz
  • 7.5 dBi @ 1400–2700 MHz
  • 8.1 dBi @ 3400–4200 MHz
  • 8.7 dBi @ 5000–6000 MHz
• VSWR: < 2.0 over 95% of the band
• Power Handling: 10W
• Input Impedance: 50Ω
• Polarization: Linear

Wi-Fi Antenna

• Antenna Elements: 2
• Peak Gain & Frequencies:
  • 6.0 dBi @ 2400–2500 MHz
  • 7.4 dBi @ 5000–6000 MHz
• VSWR: < 2.0
• Power Handling: 10W
• Input Impedance: 50Ω
• Polarization: Linear

GPS Antenna

• Frequency Range: 1575–1602 MHz
• Peak Gain: 1.2 dBiC @ 1575 MHz / 2.0 dBiC @ 1602 MHz
• VSWR: < 1.6
• Output Return Loss: -10 dB max
• LNA Gain: 29 ±3 dB
• Operating Voltage: 3.3V
• Power Consumption: 6 ±2 mA at 3.3V

Cables

LTE/5G & Wi-Fi Cable (CFD-200):

• Loss: 0.33 dB/m @ 900 MHz / 0.49 dB/m @ 2000 MHz / 0.55 dB/m @ 2500 MHz / 0.87 dB/m @ 5800 MHz
• Diameter: 0.2" / 5.0 mm
• Jacket: Half matt PVC, UV resistant
• Termination: QMA male, SMA male, RP-SMA male (Wi-Fi)

GPS Cable (RG-174):

• Loss: 3.4 dB/m @ 1000 MHz / 4.9 dB/m @ 1800 MHz
• Diameter: 0.1" / 2.7 mm
• Jacket: Half matt PVC, UV resistant
• Termination: QMA male or SMA male Mechanical

• Product Dimensions: 16.83" / 427.4 mm diameter x 2.46" / 62.5 mm height (spigot not included)
• Packaged Dimensions: 20.16" x 20.09" x 9.06" / 512 x 510 x 230 mm
• Radome Material: UV stable PC
• Mounting Types: Panel, surface (with additional mount), magnetic (with additional mount)
• Mounting Hole: 1.7" / 43 mm
• Max Panel Thickness: up to 6.7" / 170 mm

Environmental

• IP Rating: IP67
• Operating Temperature: -40° to 176°F / -40° to 80°C
• Storage Temperature: -40° to 176°F / -40° to 80°C
• Wind Survivability: 137 mph / 220 km/h

Compliance

RoHS, REACH, WEEE, UL 94 HB (enclosure flammability), UL 758 VW-1 (cable flammability), UL 746C (F1 long-term UV exposure), MIL-STD 810F / ASTM B117 (salt spray)
