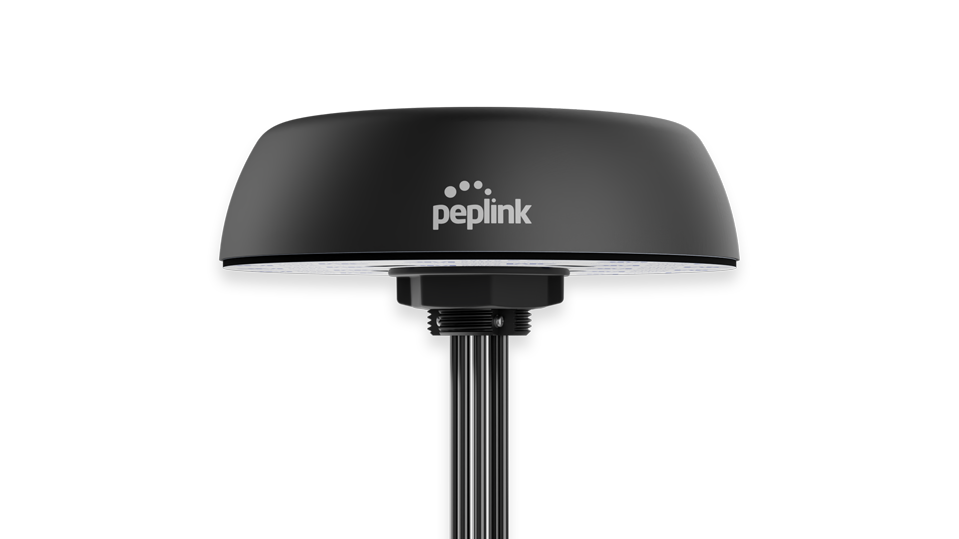

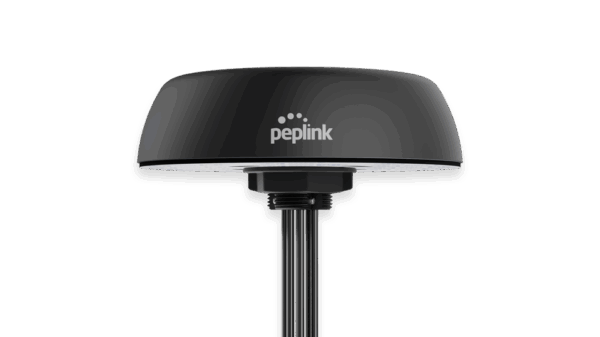

Peplink ANT-MB-42G-S-B-1 Mobility 42G

Cellular Antenna

• Antenna Elements: 4
• Peak Gain & Frequencies:
  • 4.4 dBi @ 617–960 MHz
  • 7.8 dBi @ 1710–2700 MHz
  • 7.9 dBi @ 3400–4200 MHz
  • 8.2 dBi @ 5000–6000 MHz
• Cellular Bands: LTE bands B1–B86 (except B31, B72, B73, B87, B88); 5G bands n1–n99
• VSWR: < 2.5 over 95% of the band
• Power Handling: 10W
• Input Impedance: 50Ω
• Polarization: Linear
• Ground Plane: Not required

Wi-Fi Antenna

• Antenna Elements: 2
• Peak Gain & Frequencies:
  • 5.0 dBi @ 2400–2500 MHz
  • 7.5 dBi @ 5000–6000 MHz
• VSWR: < 2.5
• Power Handling: 10W
• Input Impedance: 50Ω
• Polarization: Linear

GPS Antenna

• Frequency Range: 1561–1602 MHz
• Peak Gain: 0.5 dBi @ 1575 MHz / 1.6 dBi @ 1602 MHz
• VSWR: < 2 dB
• Output Return Loss: 10 dB max
• LNA Gain: 28 ±3 dB
• Noise Figure: 1.5 dB max at 3.3V
• Operating Voltage: 3.3V
• Power Consumption: 8.5 ±2.5 mA at 3.3V

Cables

LTE/5G & Wi-Fi Cable (CFD-200):

• Loss: 0.33 dB/m @ 900 MHz / 0.49 dB/m @ 2000 MHz / 0.55 dB/m @ 2500 MHz / 0.87 dB/m @ 5800 MHz
• Diameter: 0.2" / 5.0 mm
• Jacket: Half matt PVC, UV resistant
• Cellular Termination: QMA male or SMA male
• Wi-Fi Termination: QMA male or RP-SMA male

GPS Cable (RG-174):

• Loss: 3.4 dB/m @ 1000 MHz / 4.9 dB/m @ 1800 MHz
• Diameter: 0.1" / 2.7 mm
• Jacket: Half matt PVC, UV resistant
• Termination: QMA male or SMA male

Mechanical

• Product Dimensions: 8.19" / 208 mm diameter x 2.28" / 58 mm height (spigot not included)
• Packaged Dimensions: 9.09" x 8.50" x 6.14" / 231 x 216 x 156 mm
• Radome Material: UV stable PC
• Mounting Types: Panel, wall, pole
• Mounting Hole: 1-11/16" / 43 mm
• Max Panel Thickness: 19/32" / 15 mm

Environmental

• IP Rating: IP68
• Operating Temperature: -40° to 176°F / -40° to 80°C
• Storage Temperature: -40° to 176°F / -40° to 80°C
• Wind Survivability: 167 mph / 268 km/h (note: plastic mounting bracket not rated for high wind; stainless steel L-mount ACW-882 recommended for high wind areas)

Compliance

RoHS, REACH, WEEE, UL 94 HB (enclosure flammability), UL 758 VW-1 (cable flammability), UL 746C (F1 long-term UV exposure), MIL-STD 810F / ASTM B117 (salt spray)
