Cellular Antenna
- Antenna Elements: 4
- Peak Gain & Frequencies:
- 5.7 dBi @ 617–960 MHz
- 6.8 dBi @ 1410–2700 MHz
- 8.9 dBi @ 3300–4400 MHz
- 7.3 dBi @ 5000–6000 MHz
- VSWR: < 2.5 over 95% of the band
- Power Handling: 10W
- Input Impedance: 50Ω
- Polarization: Linear
- Connectors: Right angle SMA male
Wi-Fi Antenna
- Antenna Elements: 2
- Peak Gain & Frequencies:
- 6.3 dBi @ 2400–2500 MHz
- 7.4 dBi @ 5000–6000 MHz
- VSWR: < 3.0
- Power Handling: 10W
- Input Impedance: 50Ω
- Polarization: Linear
- Connectors: Right angle RP-SMA male
GPS Antenna
- Frequency Range: 1575–1602 MHz
- Peak Gain: 0.9 dBi @ 1575 MHz / 0.8 dBi @ 1602 MHz
- VSWR: < 2.0
- LNA Gain: 27 ±3 dB
- Noise Figure: 2.5 dB
- Operating Voltage: 3.3V
- Power Consumption: 10 ±3.0 mA
- Connectors: Right angle SMA male
Mechanical
- Product Dimensions: 17.6" x 14.5" x 5.3" / 448 x 368 x 135 mm
- Packaged Dimensions: 585 x 456 x 185 mm / 23.03" x 17.95" x 7.28"
- Enclosure Material: Bottom plate — Aluminum; Other parts — UV stable PC
- Mounting Options: Surface, Pole, Magnet, Vehicle roof racks, or Custom mounts
Environmental
- IP Rating: IP67
- Operating Temperature: -40° to 176°F / -40° to 80°C
- Storage Temperature: -40° to 176°F / -40° to 80°C
- Humidity: (Sealed IP67 enclosure)
Compliance
RoHS, REACH, WEEE, UL 94 V-0 (flammability), UL 746C (F1 long-term UV exposure), ASTM B117 (salt spray)
Compatible Routers
- BR1 Mini Series (BR1 Mini, BR1 Mini Core, BR1 Mini 5G, BR1 Mini M2M)
- Transit Duo Pro
- BR1 Pro Series (BR1 Pro 5G, BR1 Pro CAT-20)
In the Box
- Antenna MAX S enclosure
- L-Mount Set
- Power supply/splitter mounting set
- Router fixation screws
- 2x M25 cable glands, 1x M25 hole plug
- 2x RJ45 glands, 2x RJ45 caps, 2x hole plugs
- 1x DC cable connector
- 1x Starlink power cable (35.4" / 900 mm)
- 1x Starlink Ethernet cable (35.4" / 900 mm)
- 1x Double-sided 3M adhesive pad
- 1x Ethernet cable (7.87" / 200 mm)
- 1x DC cable (3.93" / 100 mm)
Ordering Information

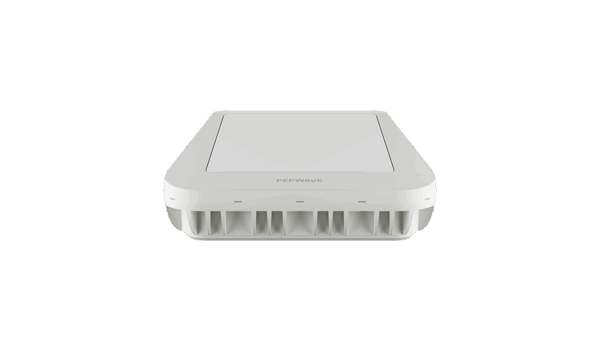

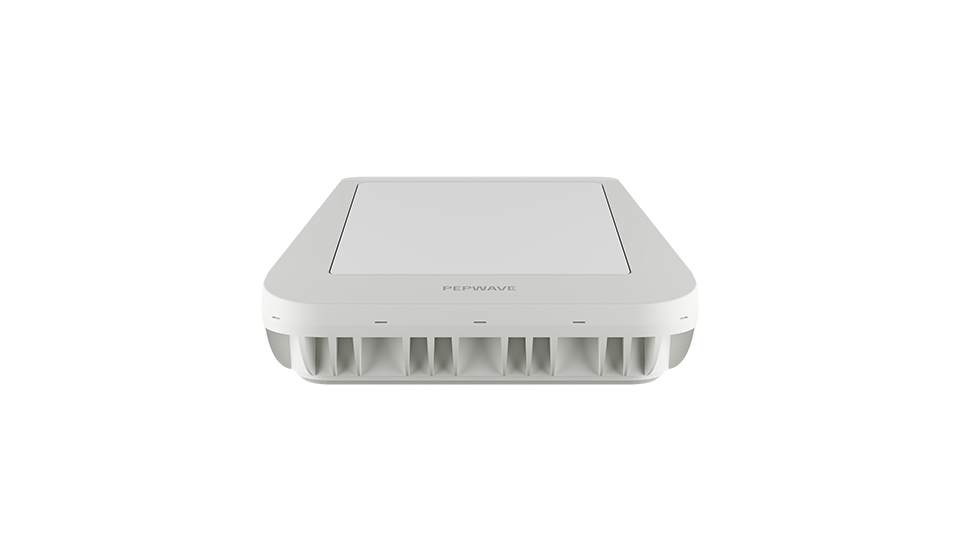

- ANT-MAX-S — Enclosure with integrated 4x 5G/LTE, 2x Wi-Fi, and GPS antennas for Peplink routers and Starlink Mini
Featured Add-ons:
- ACW-651 — 1" 14 TPI female to Mobility thread for deck mount
- ACW-653A — 1¼" 11 TPI male adapter for deck mount
