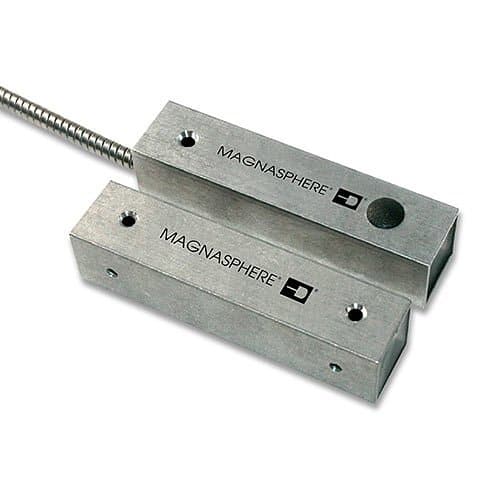

Magnasphere HS-L1.5 UL634 Level High Security Single Alarm, Surface Mount Contact, Closed Loop with Pry Tamper Closed
Tested to 9th edition UL 634 Level 1 high security(both in-swing and out-swing doors)
Made with MAGNASPHERE switch technology
No adjustment required for
$157.58
Product Overview
UL-634 Level 1 BMS High Security contact for Safes, Vaults, Data Centers Replaces the old technology triple balanced BMS devices.
Main Features
- Made with Magnasphere switch technology
- No adjustment required for installation
- No brackets needed for most installations
- Solid color-coded lead wires
- Integrated removal/pry
- Tamper (no back plates)
- Two hole mounting
| Specifications | |||||||||||||||||
| Part Number | HS-L1.5-101 | Product Model | HS-L1.5-101 | Product Name | HS-L1.5-101 Magnetic Contact | Product Series | HS | Product Type | Magnetic Contact | ||||||||
| Technical Information | |||||||||||||||||
| Connectivity Technology | Wired | Contact Configuration | N.C. | Lead Gauge | 0.87" | Mounting Type | Surface Mount | Power Consumption | 250 mW | Recommended Use | Door, Safe, Vault | Security Grade | 1 | Standard Gap | 0.25" | Termination Style | Wire Leads |
| Physical Characteristics | |||||||||||||||||
| Application/Usage | Commercial, Residential | Color | Gray, Silver | Color Family | Dual Color | Product Color | Gray, Silver | Product Material | Aluminum | ||||||||
| Power Description | |||||||||||||||||
| Input Current | 250 mA | Input Voltage | 30V DC | Power Source | DC | ||||||||||||
| Product Information | |||||||||||||||||
| Contact Type | Closed Loop | Installation Type | Commercial | ||||||||||||||
| Warranty | |||||||||||||||||
| Limited Warranty | 3 Year | ||||||||||||||||
| Miscellaneous | |||||||||||||||||
| Environmental Certification | RoHS 2 | Features | All Magnasphere door contacts don't break or fuse. Not a reed switch. | Package Contents | 1 x High Security L1.5 Switch Module | TAA Compliant | Yes | ||||||||||
| 1 x High Security L1.5 Magnet Module | |||||||||||||||||
| 1 x Removal Tamper Magnet | |||||||||||||||||
| 2 x Removal Tamper Caps | |||||||||||||||||
| 2 x Spacers 1/16 | |||||||||||||||||
| Weight | 2 lbs |
|---|
