Name: LifeSafetyPower FPO150-B1002C8PE8B Brivo Unified Power Systems 150W Dual Voltage, 120 VAC 16 Relay Lock Outputs
SKU: FPO150-B1002C8PE8B
Availability: InStock

Brivo Unified Power Systems combine FlexPower power modules alongside access control hardware in one compact and secure UL listed solution. Unified Power features include:

Built in Fire Alarm disconnect unlocks doors on a fire alarm
Low battery cutoff protects batteries from deep discharge
Dedicated fast charger prolongs battery life
Enhanced surge immunity for input/output protection
Locksafe optimized voltages provide long-term lock protection
OutSmart Visual LED notification (12V/Green, 24V/Blue)
Network ready with optional LifeSafety Power NetLink® module
- Monitor power supply and battery in NetLink dashboard
- Remote test batteries
Lifetime Warranty LifeSafety Power’s quality commitment

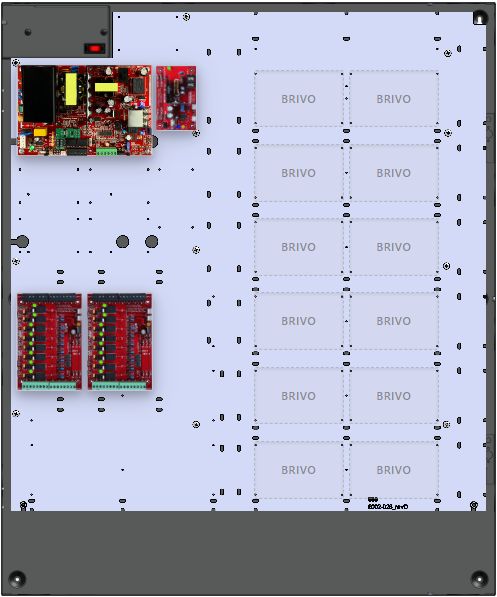

System Details

1 x FPO150 150W Total Output, 120 VAC Input, AC Fault and System Fault form C contacts may be triggered by low/no battery, short to earth ground, power supply failure, or blown fuse
1 x B100 Terminal block output is Class 2 power limited and jumper selectable for either a fixed 12VDC or an adjustable range between 5-18VDC at 4 amps maximum current
2 x C8P (16 Relay Lock Outputs) 2.5A Class 2 power limited outputs, programmable for failsafe/failsecure, FAI, NC/NO input, voltage or dry output per zone. Dual buss voltage selection by zone, OutSmart dual color LEDs
E8B Enclosure Size: 36.0H x 30.0W x 6.5D in (91.44 x 76.20 x 16.51 cm)
- Enclosure E8 E8 enclosure size 36H x 30W x 6.5D
- Backplate E8B Backplate mounting for ACS5000 or ACS6000 series controllers
System Weight 62.45 lbs (28.33kg)

Weight	62.45 lbs
