Name: LifeSafetyPower FPG100-C8D8E4M1/P8-AX2 Mercury ProWire Power Systems 100W Single Voltage, Universal 8 Relay Lock Outputs 8 Auxiliary Outputs
SKU: FPG100-C8D8E4M1/P8-AX2
Availability: InStock

Mercury ProWire Power Systems combine FlexPower modules alongside access control hardware in one compact and secure UL listed solution. ProWire systems are prewired for power to the access control modules, faults, tamper switch, lock control wiring (where applicable) and communication. ProWire features include:

Built in Fire Alarm disconnect unlocks doors on a fire alarm
Low battery cutoff protects batteries from deep discharge
Dedicated fast charger prolongs battery life
Enhanced surge immunity for input/output protection
Locksafe optimized voltages provide long-term lock protection
OutSmart Visual LED notification (12V/Green, 24V/Blue)
Network ready with optional LifeSafety Power NetLink® module
- Monitor power supply and battery in NetLink dashboard
- Remote test batteries
Lifetime Warranty LifeSafety Power’s quality commitment

System Details

1 x FPG100 100W Total Output, Universal Input, AC Fault and System Fault form C contacts may be triggered by low/no battery, short to earth ground, power supply failure, or blown fuse
1 x C8 (8 Relay Lock Outputs) 3A fused outputs, programmable for failsafe/failsecure, FAI, NC/NO input, voltage or dry output per zone. Dual buss voltage selection by zone, OutSmart dual color LEDs
1 x D8 (8 Auxiliary Outputs) 3A fused Outputs, dual buss voltage selection by zone, OutSmart dual color LEDs

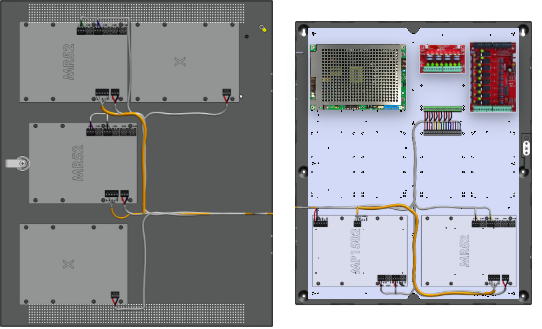

E4M1/W8-AX2 Enclosure Size: 24.0H x 20.0W x 6.5D in (60.96 x 50.80 x 16.51 cm)
- Enclosure E4M1
- Backplate E4M1
- ProWire E4M1/W8-AX2 8 Doors with IO, Prewired for one LP1502, three MR52, and two MR16 boards
- Routing Kit Panduit, E4M1
System Weight 30.45 lbs (13.81kg)

Weight	31 lbs
