Name: LifeSafetyPower FPG100-B150C82D8PE4M Mercury Unified Power Systems 100W Dual Voltage, Universal 8 Relay Lock Outputs 16 Auxiliary Outputs
SKU: FPG100-B150C82D8PE4M
Availability: InStock

Mercury Unified Power Systems combine FlexPower power modules alongside access control hardware in one compact and secure UL listed solution. Unified Power features include:

Built in Fire Alarm disconnect unlocks doors on a fire alarm
Low battery cutoff protects batteries from deep discharge
Dedicated fast charger prolongs battery life
Enhanced surge immunity for input/output protection
Locksafe optimized voltages provide long-term lock protection
OutSmart Visual LED notification (12V/Green, 24V/Blue)
Network ready with optional LifeSafety Power NetLink® module
- Monitor power supply and battery in NetLink dashboard
- Remote test batteries

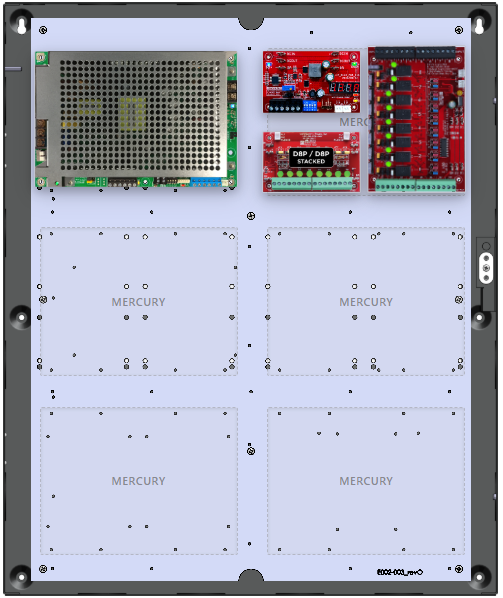

System Details

1 x FPG100 100W Total Output, Universal Input, AC Fault and System Fault form C contacts may be triggered by low/no battery, short to earth ground, power supply failure, or blown fuse
1 x B150 Programmable 12V or 3-18V output, 6A, overload protection, fault reporting, compact size
1 x C8 (8 Relay Lock Outputs) 3A fused outputs, programmable for failsafe/failsecure, FAI, NC/NO input, voltage or dry output per zone. Dual buss voltage selection by zone, OutSmart dual color LEDs
2 x D8P (16 Auxiliary Outputs) 2.5A Class 2 Power Limited Outputs, dual buss voltage selection by zone, OutSmart dual color LEDs
E4M Enclosure Size: 24.0H x 20.0W x 6.5D in (60.96 x 50.80 x 16.51 cm)
- Enclosure E4
- Backplate E4M
System Weight 29.75 lbs (13.49kg)

Weight	30 lbs
