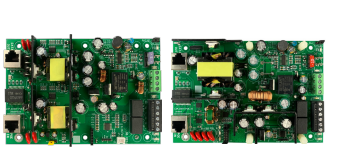

Name: LifeSafetyPower BX50-C4E1M PoE Power Extractor Splitters
SKU: BTS500-8R
Availability: InStock

BitStream BX series access control power extractor splitters convert
PoE to 12 and 24VDC power for use in access control, surveillance, or
other applications.

– BX50 is compatible with the Single Point Fire Alarm
Interface (SFI) mode of the BT500 PoE midspan injector. SFI
provides fire alarm control of the BX50 lock output through a single
fire alarm disconnect at the BT500. Local battery backup using
SLA or LFP batteries provides backup for the 12V system output.

Outputs: – System Power Output (12VDC) – Lock Power Output (BX50: 12/24VDC | BX75: 24VDC) – Local Fire Disconnect Lock Control (BX75) – Central Fire Disconnect Lock Control (BX50 via BT500) – Overload & short circuit protection with auto-restart Battery Backup: – Built-in battery charger for local backup – Charges Sealed Lead Acid (SLA) or Lithium Iron Phospate – Auto switchover to battery with zero transfer time – Integrated low battery cutoff Supervision: – PoE fail, Battery fail (Separate form "C") – Low power shutdown when battery voltage too low Local Fire Alarm Disconnect Input (BX75): – DC voltage: 9 to 28VDC, 3 to 15mA – Dry contact NO/NC – Optional Fire Alarm latching LED Visual Indicators: – System output, lock output, PoE fault, battery fault, fire alarm activation (BX75), PoE Class (BX75) Agency Approvals: – UL294, UL2610, ULC S318 – FCC PART 15, Subpart B – ROHS Leadfree

Downloads

BX50 Datasheet

Weight	20 lbs
