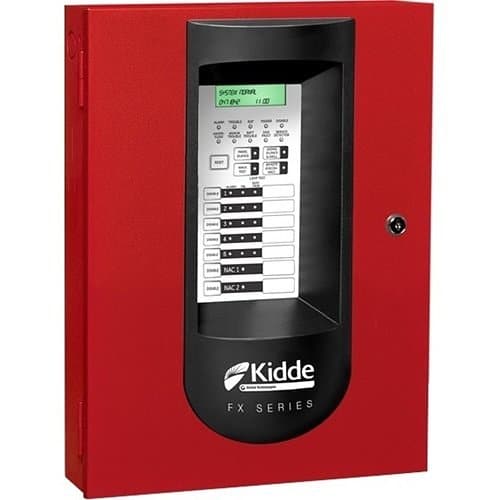

Kidde FX-5R Zone Conventional Fire Alarm Control Panel, Red
Available in 5, and 10 zone (IDC) models
CleanMe feature provides remote annunciation of a dirty detector
Automatic drift compensation with select detectors reduces false alarms and extends dust
$676.49
Product Overview
Kidde brand conventional fire alarm systems consist of 5 and 10 zone fire alarm control panels (FACP), an optional integrated upload/download DACT (dialer), intelligent/analog type detector features, serial annunciator modules, and serial remote relay modules. All FACPs and components are Listed to the 9th edition of the ANSI/UL 864 standard and CSFM/FDNY approved.
Main Features
- Available in 5, and 10 zone (IDC) models
- CleanMe feature provides remote annunciation of a dirty detector
- Automatic drift compensation with select detectors reduces false alarms and extends dust life
- Listed to ANSI/UL 864 9th Edition
- Models with fully integrated upload/download DACT enables PC programming
- Zone or NAC pairs convertible to single Class A circuits
- Combination Waterflow and Supervisory IDCs
- NACs programmable by zone and individually selectable for notification appliances, continuous, temporal outputs, or coded
- Front panel programmable simplifies installation and servicing
- Precision synchronization with compatible notification appliances and optional audible silence over two wires
| Specifications | |||||||||
| Part Number | FX-5R | Product Model | FX-5R | Product Name | 5 Zone Fire Alarm Panel Red 120VAC Power Source, 24VDC Output | Product Series | FX | Product Type | Fire Alarm Control Panel |
| Technical Information | |||||||||
| Connectivity Technology | Wired | Number of Relays Supported | 9 | Number of Standard Zones | 500% | Panel Control Type | Conventional | ||
| Display & Graphics | |||||||||
| Display Type | LCD | ||||||||
| Network & Communication | |||||||||
| Sensor Connectivity | Wired | ||||||||
| Physical Characteristics | |||||||||
| Color | Red | ||||||||
| Power Description | |||||||||
| Input Voltage | 120V AC, 24V DC | ||||||||
| Weight | 5 lbs |
|---|
