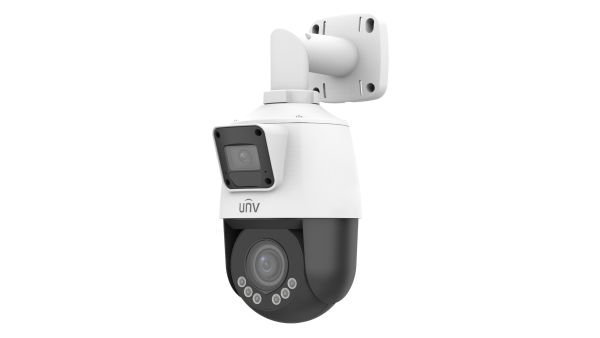

| IPC9312LFW-AF28-2X4 |
| Camera |
Panorama |
Detail |
| Sensor |
1/2.8", 2MP, CMOS |
| Min. Illumination |
Color:0.002 lux (F1.6, AGC ON)
0 lux with IR |
Color:0.002 lux (F1.6, AGC ON)
0 lux with IR/Warm light |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| Shutter |
Auto/Manual, 1 ~ 1/100000s |
| WDR |
120dB |
DWDR |
| S/N |
＞52dB |
| Lens |
| Lens type |
[email protected] |
[email protected],
AF automatic focusing and motorized zoom lens |
| Optical Zoom |
N/A |
4X |
| Iris |
Fixed aperture |
| Field of View (H) |
102.4° |
106.6° ~ 30.6° |
| Field of View (V) |
54.9° |
56.5° ~ 17.4° |
| Field of View (D) |
133.1° |
138.6° ~ 37.6° |
| DORI |
| DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
| 2.8(Panorama) |
43.4(142.5ft) |
17.4(57.0ft) |
8.7(28.5ft) |
4.3(14.3ft) |
| 2.8(Detail) |
43.4(142.5ft) |
17.4(57.0ft) |
8.7(28.5ft) |
4.3(14.3ft) |
| 12(Detail) |
162.9(534.6ft) |
65.2(213.8ft) |
32.6(106.9ft) |
16.3(53.5ft) |
| Illuminator |
| IR Range |
Up to 10m (32.8 ft) |
Up to 50m (164.0 ft) |
| Warm Light Range |
N/A |
Up to 10m (32.8 ft) |
| Wavelength |
850nm (IR) |
| Light On/Off Control |
Auto/Manual |
| Video |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| Frame Rate |
Main Stream: 1080P (1920*1080),Max 25fps
Sub Stream: 720P (1280*720), Max 25fps |
| Video Bit Rate |
128 Kbps~16 Mbps |
| U-code |
Support (Main stream) |
| ROI |
Up to 8 areas |
| Video stream |
Dual streams |
| OSD |
Up to 4 OSDs |
| Privacy Mask |
24 areas, up to 4 areas per scene |
| Image |
| White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction |
2D/3D DNR |
| Smart IR |
Support |
| Flip |
Normal/Flip Vertical/Flip Horizontal/180° |
| HLC |
Support |
| BLC |
Support |
| Defog |
Digital defog |
| Events |
| Basic Detection |
Motion detection, Audio detection |
| General Function |
Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio |
| Audio Compression |
G.711U, G.711A |
| Audio Bitrate |
64 Kbps |
| Two-way Audio |
Support |
| Suppression |
Support |
| Sampling Rate |
8 kHz |
| Storage |
| Edge Storage |
Micro SD, up to 256 GB |
| Network Storage |
ANR |
| Network |
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS |
| Compatible Integration |
ONVIF (Profile S, Profile G), API, SDK |
| User/Host |
Up to 32 users. 3 user levels: administrator, operator and common user |
| Security |
Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client |
EZStation
EZLive
EZView |
| Web Browser |
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
| Pan & Tilt |
| Pan Range |
N/A |
0° ~ 345° |
| Pan Speed |
N/A |
1°/s ~ 40°/s |
| Preset speed: N/A |
Preset speed: 40°/s |
| Tilt Range |
18° ± 5° |
-10° ~ 100° |
| Tilt Speed |
N/A |
1°/s ~ 50°/s |
| Preset speed: N/A |
Preset speed: 50°/s |
| Number of Presets |
256 |
| Preset Patrol |
16 patrol routes, up to 64 presets for each route |
| Patrol Stay Time |
1000s~1800s |
| Preset Image Freeze |
N/A |
| Home Position |
Support |
| Interface |
| Audio I/O |
N/A |
| Alarm I/O |
N/A |
| Serial Port |
N/A |
| Built-in Mic |
Support (Mic*2) |
| Built-in Speaker |
Support |
| Wi-Fi |
N/A |
| Network |
1 * RJ45 10M/100M Base-TX Ethernet |
| Video Output |
N/A |
| Certification |
| EMC |
CE-EMC (EN55032:2015; EN55024:2010+A1:2015; EN61000-3-2:2014; EN61000-3-3:2013)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety |
CE LVD (EN 62368-1:2014+A11:2017; EN 62368-1:2014)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment |
CE-ROHS (2011/65/EU) |
| Protection |
IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| General |
| Power |
DC12V, PoE+(IEEE 802.3at) |
| Power consumption: MAX 16W |
| Power Interface |
Ø 5.5mm coaxial power plug |
| Dimensions (Ø x H) |
Wall Mount: Φ134 x 192 x 302mm (Φ5.3” x 7.6” x 11.9”)
Ceiling Mount: Φ134 x 154 x 363mm (Φ5.3” x 6.1” x 14.3”) |
| Weight |
1.03kg (2.27lb) |
| Working Environment |
-20℃ ~ 60℃(-4°F ~ 140°F)，Humidity: ≤95% RH (non-condensing) |
| Storage Environment |
-30℃ ~ 70℃(-22°F ~ 158°F)，Humidity: ≤95% RH (non-condensing) |
| Surge protection |
2KV |
| Reset button |
Support |
