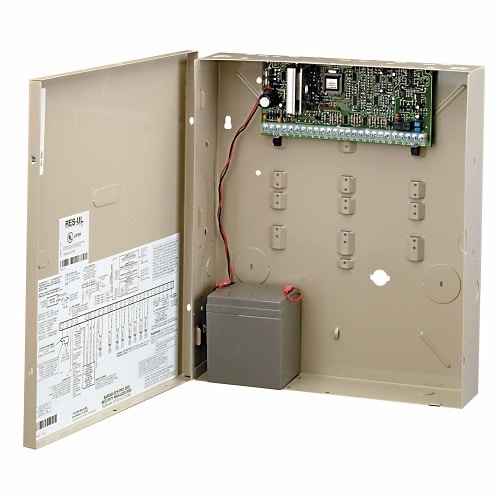

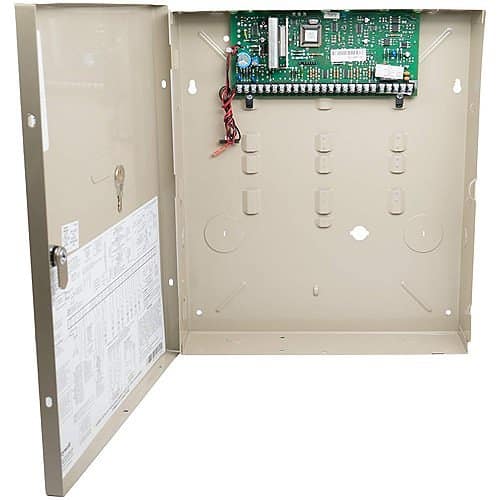

Honeywell Home VISTA-20P VISTA 48-Zone Security Control Panel for Wired Alarm
IP and cellular radio alarm reporting and upload/download capability
Fully compatible with Resideo Total Connect Remote Services
Z-Wave thermostats, lights, locks,Water shut-off, garage door, shades and audio control via Tuxedo Touch and
$196.49
Product Overview
The high capacity, feature-rich VISTA-20P lets you deliver more value to your customers on each and every sale with up to 48 zones of protection, Internet uploading/downloading, graphic keypad support and dual partitions. VISTA-20P gives you the ability to send alarm signals and upload/download via an Internet Protocol (IP), improving the speed at which information can be delivered to and from the control panel. In addition, the VISTA-20P, used with an AlarmNet Internet or digital communicator can be installed in premises without TELCO lines with no sacrifice in functionality. The panel’s installation advantages, innovative end-user benefits and robust system capacity make the value-priced VISTA-20P an ideal choice for higher end installations.
Main Features
- IP and cellular radio alarm reporting and upload/download capability
- Fully compatible with Resideo Total Connect Remote Services
- Z-Wave thermostats, lights, locks,Water shut-off, garage door, shades and audio control via Tuxedo Touch and VAM
- Wireless keys can be programmed without using zones
- Eight on-board hardwired zones standard (15 when Zone Doubling feature is used) – 40 hardwire expansion zones – 40 wireless expansion zones
- Two low current on-board trigger outputs
- 100 Event Log viewable at system keypads with time/date stamp
- 48 system user codes assignable to either partition
- Expandable to 48 total zones when used with hardwired and/or wireless expansion modules
- Four installer-configurable zone types allows the installer to create custom zone types by assigning all zone attributes
| Specifications | |||||||||||
| Part Number | VISTA-20P | Product Line | VISTA | Product Model | VISTA-20P | Product Name | VISTA-20P Burglar Alarm Control Panel | Product Series | VISTA-20P | Product Type | Burglar Alarm Control Panel |
| Technical Information | |||||||||||
| Cellular Generation | 4G LTE | Connectivity Technology | Wired, Wireless | Number of Events Log | 100 | User Code Storage | 48 | ||||
| Battery Information | |||||||||||
| Battery Voltage | 12 DC | ||||||||||
| Network & Communication | |||||||||||
| Sensor Connectivity | Wired, Wireless | ||||||||||
| Physical Characteristics | |||||||||||
| Application/Usage | Residential security systems | Depth | 12.5" | Height | 14.5" | Width | 3" | ||||
| Product Information | |||||||||||
| Installation Type | Commercial, Residential | ||||||||||
| Warranty | |||||||||||
| Limited Warranty | 1 Year | ||||||||||
| Miscellaneous | |||||||||||
| Compatibility | Supports four graphic touchscreen keypads | Features | Fully compatible with Resideo Total Connect® Remote Services, IP and cellular radio alarm reporting and upload/download capability | Package Contents | Control Panel Only | ||||||
| Weight | 10 lbs |
|---|
