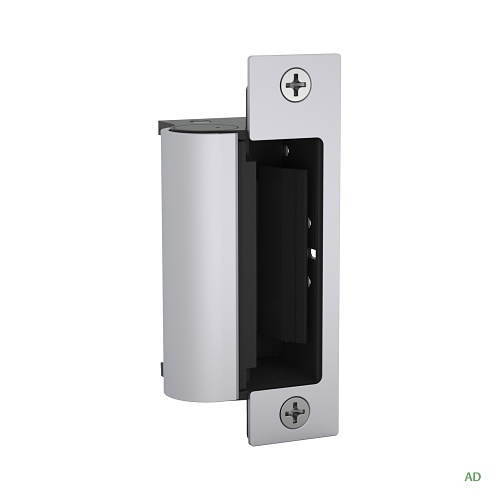

HES 1006CDB-12/24D-630 1006 Series Complete Electric Strike for Deadbolt Locks, Includes Faceplates (ND, HM), Satin Stainless Steel
The Dual Interlocking Plunger Design and Heavy Duty Stainless Steel Construction
Enables it to Exceed Every Standard Developed for Electric Strikes
Full Keeper Shims for Horizontal
$672.56
Product Overview
The 1006CDB is the electric strike for every deadbolt lockset. It accommodates every cylindrical and mortise lockset for ANSI 4-7/8″ strike plates with up to a 1″ deadbolt. Included in the box is a 1006 strike body, 2 faceplates (ND and NM) and all the necessary mounting hardware you will need.
The dual interlocking plunger design and heavy duty stainless steel construction of the 1006 series, enables it to exceed every standard developed for electric strikes.Tested to exceed 3,000 lbs. of static strength, 350 ft-lbs. of dynamic strength and factory tested to exceed 1,000,000 cycles of operation, the 1006 is in a class of its own.
Main Features
- The Dual Interlocking Plunger Design and Heavy Duty Stainless Steel Construction
- Enables it to Exceed Every Standard Developed for Electric Strikes
- Full Keeper Shims for Horizontal Adjustment
| Specifications | |||||||||
| Part Number | 10620453 | Product Model | HE-100630601 | Product Name | HE-100630601 Electric Strike | Product Series | 1006 | Product Type | Electric Strike |
| Technical Information | |||||||||
| Compatible Door Lock Type | Cylindrical, Mortise | Door Handling | Non Handed | Security Configuration | Fail Secure | ||||
| Physical Characteristics | |||||||||
| Color | Silver | Faceplate Depth | 2.06" | Faceplate Height | 4.87" | Faceplate Width | 1.68" | Product Material | Stainless Steel |
| Power Description | |||||||||
| Input Voltage | 12V DC, 24V DC | ||||||||
| Warranty | |||||||||
| Limited Warranty | 5 Year | ||||||||
| Miscellaneous | |||||||||
| Compatibility | Mortise Locksets | Features | Adjustable Keeper |
| Weight | 3 lbs |
|---|
