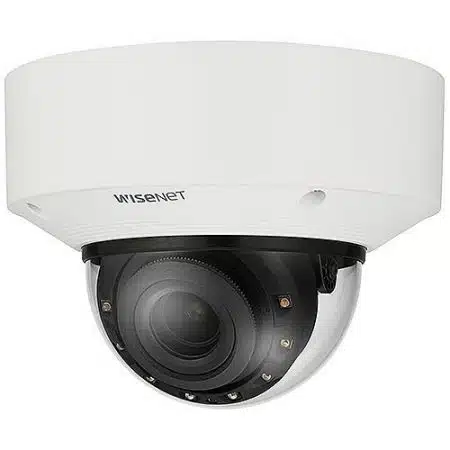

Hanwha XNV-C6083R Series 2MP Outdoor IR Vandal Dome IP Camera, 2.8-12mm Motorized Varifocal Lens,
$1,080.02
The new X series cameras utilize AI to detect and classify people, vehicles, faces, license plates and more in real-time. With a range of available resolutions from 2MP to 4K, the cameras’ deep-learning algorithms can reliably identify multiple distinct objects. Reduce false alarms due to none interesting motion, like wind-blown trees, shadows, or animals. Analytics become a reliable second pair of eyes to operators helping them know where to look for important real-time events, while making post-event forensic searches highly efficient.
Main Features
- For remote surveillance needs, this network camera is best suited
- Up to 1920 x 1080 video resolution
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- 12 mm maximum focal length for dependable identification distances with better coverage
- f/1.4 maximum aperture for productive capturing according to focal length and lighting conditions
- 4.3x optical zoom for bringing the subject closer for maximum surveillance efficiency
- Provides night vision of objects at a distance of up to 131.23 ft
- Full HD recording format for stunning, vivid video results with maximum efficiency
- Infrared night vision type for better surveillance reliability and ensure maximum productivity
- Varifocal lens type to ensure maximum surveillance dependability and optimal performance
Specifications | |||||||||||||||||||||||||
Part Number | XNV-C6083R | NDAA Compliant | Yes | Product Model | XNV-C6083R | Product Name | 2MP IR Outdoor Vandal Dome AI Camera | Product Series | X | Product Type | Dome Camera | Weight (Approximate) (g) | 1450 | ||||||||||||
Technical Information | |||||||||||||||||||||||||
Connectivity Technology | Wired | Effective Camera Resolution | 2MP | Field of View | H: 120°-27°, V: 63°-15°, D: 143°-32° | HD Recording | Yes | Lens Type | DC Auto Iris | Maximum Aperture | F1.4 | Maximum Focal Length (mm) | 12 | Maximum Frame Rate | 60 fps | Minimum Focal Length | 2.8 mm | Night Vision | Yes | Night Vision Type | Infrared | Optical Zoom | 4.3x | Power Consumption (PoE) (W) | 12.95 |
Camera | |||||||||||||||||||||||||
Night Vision Distance | 131.23 ft | Night Vision Distance (mm) | 40000 | Wide Dynamic Range | Yes | ||||||||||||||||||||
Display & Graphics | |||||||||||||||||||||||||
Color Supported | Color | Effective Camera Resolution (Pixel) | 2000000 | Maximum Video Resolution | 1920 x 1080 | ||||||||||||||||||||
Environmental Conditions | |||||||||||||||||||||||||
Maximum Operating Temperature | 131°F | Maximum Operating Temperature (°F) | 131 | Minimum Operating Temperature | -40°F | Minimum Operating Temperature (°F) | -58 | Operating Humidity | 100% RH (Condensing) | ||||||||||||||||
Exposure | |||||||||||||||||||||||||
Longest Shutter Speed | 1/12000 Second | Minimum Illumination | 0.002 lux | Shortest Shutter Speed | 2 Second | ||||||||||||||||||||
Interfaces/Ports | |||||||||||||||||||||||||
Network (RJ-45) | Yes | ||||||||||||||||||||||||
Lens | |||||||||||||||||||||||||
Focal Length | 2.8-12 mm | Lens Included | Yes | Maximum Focal Length | 12 mm | Minimum Aperture | f/3.6 | ||||||||||||||||||
Network & Communication | |||||||||||||||||||||||||
Remote Management | Yes | ||||||||||||||||||||||||
Physical Characteristics | |||||||||||||||||||||||||
Color | White | Color Family | White | Diameter (mm) | 160 | Form Factor | Dome | Product Color | White | Weight (Approximate) | 3.20 lb | ||||||||||||||
Power Description | |||||||||||||||||||||||||
Input Voltage | 12V DC | ||||||||||||||||||||||||
Product Information | |||||||||||||||||||||||||
Diameter | 6.3" | Mount Type | Pendant Mount | ||||||||||||||||||||||
Projection Lens | |||||||||||||||||||||||||
Minimum Focal Length (mm) | 2.8 | ||||||||||||||||||||||||
Storage | |||||||||||||||||||||||||
Recording Formats | Full HD | Storage Type | Memory Card | ||||||||||||||||||||||
Video | |||||||||||||||||||||||||
Maximum Frame Rate (fps) | 60 | ||||||||||||||||||||||||
Miscellaneous | |||||||||||||||||||||||||
Features | Audio Detection, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Gain Control, Highlight Compensation (HLC), Motion Detection, Privacy Masking, SD Card Local Storage, Shock Detection, Tamper Detection, Wide Dynamic Range | Impact Protection Rating | IK10 | Ingress Protection Rating | IP66, IP67 | ||||||||||||||||||||
Weight | 3.2 lbs |
---|
