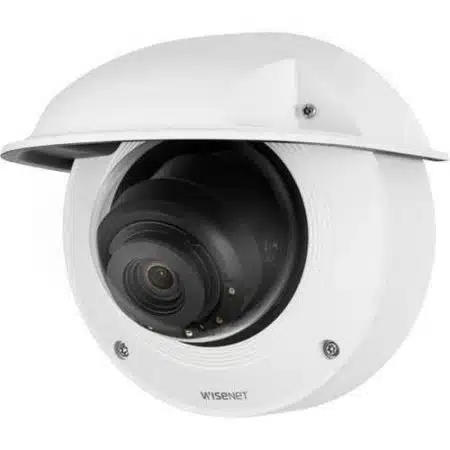

Hanwha XNV-9082R X-Series 8MP Outdoor IR Vandal Dome Camera, 2.8-8.4mm Varifocal Lens,
4K resolution
2.8~8.4 mm(3x) motorized varifocal
0.05Lux at F1.2 (Color), 0Lux (B/W, IR LED
$1,602.57
Product Overview
Wisenet 7 X-plus series network IR vandal outdoor camera, 4K (8MP Max) at 30fps, motorized vari-focal lens 3x (2.8~8.4mm), triple codec H.265/H.264/MJPEG with WiseStreamII technology, Extreme WDR, USB and CVBS port for easy installation, advanced video analytics, sound classification and business analytics, high powered IR LEDs range of 131.23′, shock detection, audio playback, true D/N, dual SD cards slots, hallway view, HLC, defog detection, DIS (Gyro), 12VDC/24VAC/PoE, IP67/IP66/IP6K9K, IK10, Nema 4X, -50°C ~ +60°C (-58°F ~ +140°F).
Main Features
- 4K resolution
- 2.8~8.4 mm(3x) motorized varifocal
- 0.05Lux at F1.2 (Color), 0Lux (B/W, IR LED on)
- Max.30fps at 4K (H.265/H.264)
- IR viewable length 40m
- Day and Night (ICR), extreme WDR (120dB)
- DIS with built-in Gyro sensor
- Video Analytics(Defocus, Directional detection, Audio detection, Shock detection, Face/Upper body detection)
- Dual SD slots (Max. 512GB)
- Modular structure, PoE support
| Specifications | |||||||||||||||||||||
| Part Number | XNV-9082R | NDAA Compliant | Yes | Product Model | XNV-9082R | Product Name | 4K Network IR Vandal Dome Camera | Product Series | X | Product Type | Network Camera | ||||||||||
| Technical Information | |||||||||||||||||||||
| Connectivity Technology | Wired | Effective Camera Resolution | 8MP | Field of View | H: 114°(Wide)~40.2°(Tele) V: 62.0°(Wide)~22.5°(Tele) D: 133.0°(Wide)~46.3°(Tele) | HD Recording | Yes | Lens Type | Varifocal | Maximum Aperture | f/1.2 | Maximum Frame Rate | 30 fps | Minimum Focal Length | 2.8 mm | Night Vision | Yes | Night Vision Type | Infrared | Optical Zoom | 3x |
| Camera | |||||||||||||||||||||
| Night Vision Distance | 131.23 ft | Wide Dynamic Range | Yes | ||||||||||||||||||
| Display & Graphics | |||||||||||||||||||||
| Color Supported | Color | Maximum Video Resolution | 1600 x 1200 | ||||||||||||||||||
| Environmental Conditions | |||||||||||||||||||||
| Maximum Operating Temperature | 140°F (60°C) | Minimum Operating Temperature | -58°F (-50°C) | Operating Humidity | 95% | ||||||||||||||||
| Exposure | |||||||||||||||||||||
| Longest Shutter Speed | 2 Second | Shortest Shutter Speed | 1/12000 Second | ||||||||||||||||||
| Interfaces/Ports | |||||||||||||||||||||
| Network (RJ-45) | Yes | ||||||||||||||||||||
| Lens | |||||||||||||||||||||
| Focal Length | 2.8-8.4 mm | Lens Included | Yes | Maximum Focal Length | 8.40 mm | Minimum Aperture | f/2.8 | ||||||||||||||
| Network & Communication | |||||||||||||||||||||
| Remote Management | Yes | ||||||||||||||||||||
| Physical Characteristics | |||||||||||||||||||||
| Color | White | Color Family | White | Durability | Dustproof, Impact Resistant, Waterproof | Form Factor | Dome | Height | 5" | Product Color | White | Weight (Approximate) | 4.19 lb | Width | 7" | ||||||
| Power Description | |||||||||||||||||||||
| Input Voltage | 12V DC, 24V AC | ||||||||||||||||||||
| Product Information | |||||||||||||||||||||
| Diameter | 7.1" | Mount Type | Ceiling Mount, Pole Mount, Wall Mount | ||||||||||||||||||
| Projection Lens | |||||||||||||||||||||
| Minimum Focal Length (mm) | 2.8 | ||||||||||||||||||||
| Storage | |||||||||||||||||||||
| Recording Formats | 4K | Storage Type | Memory Card | ||||||||||||||||||
| Video | |||||||||||||||||||||
| Analog Video Signal Format | CVBS | ||||||||||||||||||||
| Warranty | |||||||||||||||||||||
| Limited Warranty | 3 years | ||||||||||||||||||||
| Miscellaneous | |||||||||||||||||||||
| Features | Back Light Compensation (BLC), Built-in IR LED, Day/Night, SD Card Local Storage, Wide Dynamic Range | Impact Protection Rating | IK10 | Indoor/Outdoor | Outdoor | Ingress Protection Rating | IP66, IP67, IP6K9K | ||||||||||||||
| Weight | 5 lbs |
|---|---|
| Dimensions | 7.09 × 4.92 in |
