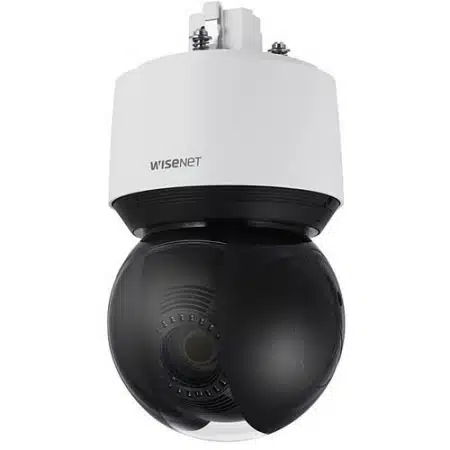

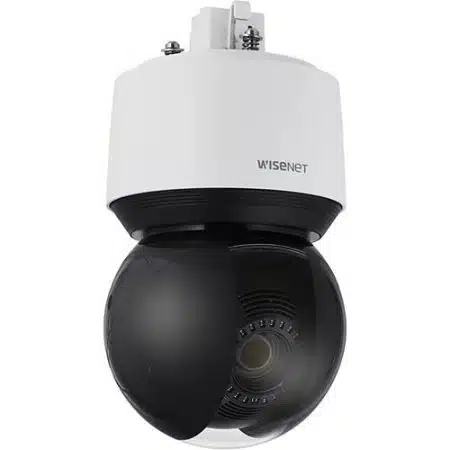

Hanwha XNP-6400 X-Series 2MP PTZ Dome Camera, 40x Optical Zoom Lens, Black/Signal
Max. 2MP resolution
4.25~170 mm (40x) zoom (digital zoom 32x)
Day&night (ICR), extreme WDR,DIS (Built-in gyro
$3,067.77
Product Overview
The XNP-6400 PTZ PLUS features our Wisenet 7 chipset, to deliver a 2MP resolution 40X optical zoom camera. Featuring increased look-up tilt range, & 360° endless pan, in a new compact, lightweight form factor for easy installation. Triple codec H.265/H.264/MJPEG with WiseStream II technology, extreme WDR, advanced video analytics and sound classification (I/O box required for audio detection/classification), true D/N, dual SD card slots, DIS (Gyro), PoE+, IP66/IK10, temperature range from -40°F ~ +131°F.
Main Features
- Max. 2MP resolution
- 4.25~170 mm (40x) zoom (digital zoom 32x)
- Day&night (ICR), extreme WDR,DIS (Built-in gyro sensor)
- Intelligent Analytics, Object auto tracking (Person/Vehicle), Target lock tracking
- H.264, H.265, MJPEG codec, WiseStreamII
- IP66, IK10, NEMA4X, NEMA-TS 2 (2.2.8, 2.2.9)
- PTZ PLUS Design applied (Compact, Lighter, Simple cabling)
| Specifications | |||||||||||||||||||
| Part Number | XNP-6400 | NDAA Compliant | Yes | Product Model | XNP-6400 | Product Name | 2MP Network 40x PTZ Camera | Product Series | X | Product Type | Network Camera | ||||||||
| Technical Information | |||||||||||||||||||
| Connectivity Technology | Wired | Effective Camera Resolution | 2MP | Field of View | H: 65.66°(Wide)~1.88°(Tele) / V: 39.40°(Wide)~1.09°(Tele) | HD Recording | Yes | Lens Type | Varifocal | Maximum Aperture | f/4.95 | Maximum Frame Rate | 60 fps | Minimum Focal Length | 4.25 mm | Night Vision | Yes | Optical Zoom | 40x |
| Camera | |||||||||||||||||||
| Night Vision Distance | 656.17 ft | Wide Dynamic Range | Yes | ||||||||||||||||
| Display & Graphics | |||||||||||||||||||
| Color Supported | Color | Maximum Video Resolution | 1600 x 1200 | ||||||||||||||||
| Environmental Conditions | |||||||||||||||||||
| Maximum Operating Temperature | 131°F (55°C) | Minimum Operating Temperature | -40°F (-40°C) | Operating Humidity | 95% | ||||||||||||||
| Exposure | |||||||||||||||||||
| Longest Shutter Speed | 2 Second | Shortest Shutter Speed | 1/12000 Second | ||||||||||||||||
| Interfaces/Ports | |||||||||||||||||||
| Network (RJ-45) | Yes | ||||||||||||||||||
| Lens | |||||||||||||||||||
| Focal Length | 4.25-170 mm | Lens Included | Yes | Maximum Focal Length | 170 mm | Minimum Aperture | f/1.6 | ||||||||||||
| Network & Communication | |||||||||||||||||||
| Remote Management | Yes | ||||||||||||||||||
| Physical Characteristics | |||||||||||||||||||
| Color | Black, White | Color Family | Dual Color | Durability | Dustproof, Impact Resistant, Waterproof | Form Factor | Dome | Height | 11.6" | Product Color | Jet Black, Signal White | Weight (Approximate) | 7.05 lb | Width | 6.2" | ||||
| Product Information | |||||||||||||||||||
| Diameter | 6.2" | Mount Type | Ceiling Mount, Corner Mount, Pendant Mount, Pole Mount, Swan Neck Mount, Wall Mount | ||||||||||||||||
| Projection Lens | |||||||||||||||||||
| Minimum Focal Length (mm) | 4.25 | ||||||||||||||||||
| Storage | |||||||||||||||||||
| Recording Formats | HD | Storage Type | Memory Card | ||||||||||||||||
| Video | |||||||||||||||||||
| Maximum Frame Rate (fps) | 60 | ||||||||||||||||||
| Miscellaneous | |||||||||||||||||||
| Features | Alarm Triggering, Audio Detection, Auto Tracking, Automatic White Balance, Back Light Compensation (BLC), Built-in HLC, Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Enter/Exit Detector, Face Detection, Gain Control, HTTPS Encryption, Motion Detection, Privacy Masking, PTZ, SD Card Local Storage, Shock Detection, Tamper Detection | Impact Protection Rating | IK10 | Indoor/Outdoor | Outdoor | Ingress Protection Rating | IP66 | TAA Compliant | Yes | ||||||||||
| Weight | 8 lbs |
|---|
