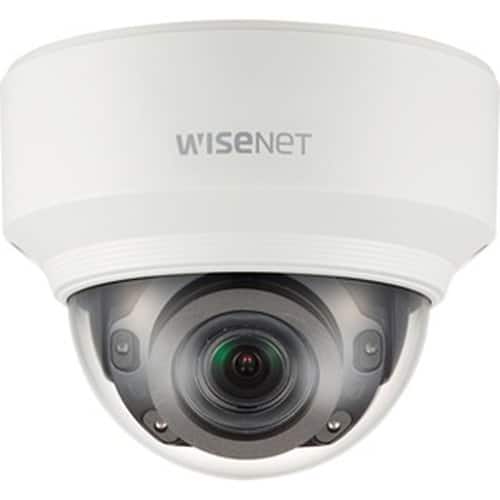

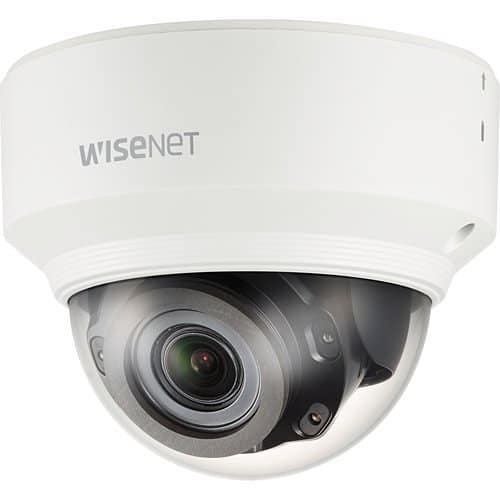

Hanwha XND-8080RV X-Series 5MP IR Indoor Vandal Dome Camera, 3.9-9.4mm Varifocal Lens,
Max. 5MP (2560 x 1920) resolution
3.9 ~ 9.4 mm (2.4x) motorized varifocal lens
Max. 30 fpsatall resolutions
$1,236.27
Product Overview
Wisenet X powered by Wisenet 5 network IR indoor vandal dome camera, 5MP @30fps WDR off/on, Motorized Vari-Focal Lens 2.4x (3.9~9.4mm) (92.1°~38.7°), H.265/H.264/MJPEG, WiseStream II compression technology, 120dB WDR, USB port for easy installation, Advanced video analytics and sound classification, High powered IR LEDs range of 98′, True D/N, Dual SD card, Hallway view, HLC, Defog detection with simple focus, DIS , 12VDC/PoE, IK08
Main Features
- Max. 5MP (2560 x 1920) resolution
- 3.9 ~ 9.4 mm (2.4x) motorized varifocal lens
- Max. 30 fpsatall resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, multiple streaming
- Day & Night (ICR), WDR (120dB), Defog
- Loitering, directional detection, fog detection, audio detection, digital auto tracking, sound classification, tampering
- Motion detection, Handover
- SD/SDHC/SDXC memory slot (Max. 512GB)
- Hallway view, WiseStreamII support
- IR viewable length 30m, IK08
| Specifications | |||||||||||||||||||||||
| Part Number | XND-8080RV | NDAA Compliant | Yes | Product Model | XND-8080RV | Product Name | 5MP Network IR Dome Camera | Product Series | X | Product Type | Dome Camera | ||||||||||||
| Technical Information | |||||||||||||||||||||||
| Connectivity Technology | Wired | Effective Camera Resolution | 4MP | Field of View | H: 92.1°-38.7°, V: 67.2°-29.0°, D: 119.9°-48.6° | HD Recording | Yes | Lens Mount Type | Board Mount | Lens Type | DC Auto Iris, P-iris | Maximum Aperture | F1.3 | Maximum Frame Rate | 30 fps | Minimum Focal Length | 3.9 mm | Night Vision | Yes | Night Vision Type | Infrared | Optical Zoom | 2.4x |
| Camera | |||||||||||||||||||||||
| Night Vision Distance | 98.43 ft | Wide Dynamic Range | Yes | ||||||||||||||||||||
| Display & Graphics | |||||||||||||||||||||||
| Color Supported | Color | Maximum Video Resolution | 3096 x 2094 | ||||||||||||||||||||
| Environmental Conditions | |||||||||||||||||||||||
| Maximum Operating Temperature | 131°F | Minimum Operating Temperature | 14°F | Operating Humidity | <90% RH | ||||||||||||||||||
| Exposure | |||||||||||||||||||||||
| Longest Shutter Speed | 2 Second | Minimum Illumination | 0.07 lux | Shortest Shutter Speed | 1/12000 Second | ||||||||||||||||||
| Interfaces/Ports | |||||||||||||||||||||||
| Network (RJ-45) | Yes | ||||||||||||||||||||||
| Lens | |||||||||||||||||||||||
| Focal Length | 3.9-9.4 mm | Lens Included | Yes | Maximum Focal Length | 9.4 mm | ||||||||||||||||||
| Network & Communication | |||||||||||||||||||||||
| Remote Management | Yes | ||||||||||||||||||||||
| Physical Characteristics | |||||||||||||||||||||||
| Color | Ivory | Color Family | White | Durability | Impact Resistant, Vandal Resistant | Form Factor | Dome | Height | 4.4" | Product Color | Ivory | Weight (Approximate) | 1.61 lb | ||||||||||
| Power Description | |||||||||||||||||||||||
| Input Voltage | 12V DC | ||||||||||||||||||||||
| Product Information | |||||||||||||||||||||||
| Diameter | 5.5" | Mount Type | Board-in Type | ||||||||||||||||||||
| Projection Lens | |||||||||||||||||||||||
| Minimum Focal Length (mm) | 3.9 | ||||||||||||||||||||||
| Storage | |||||||||||||||||||||||
| Recording Formats | Full HD | Storage Type | Memory Card | ||||||||||||||||||||
| Video | |||||||||||||||||||||||
| Maximum Frame Rate (fps) | 30 | ||||||||||||||||||||||
| Warranty | |||||||||||||||||||||||
| Limited Warranty | 3 Year | ||||||||||||||||||||||
| Miscellaneous | |||||||||||||||||||||||
| Features | Alarm Triggering, Back Light Compensation (BLC), Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, White Balance | Impact Protection Rating | IK08 | Indoor/Outdoor | Indoor | ||||||||||||||||||
| Weight | 2 lbs |
|---|
