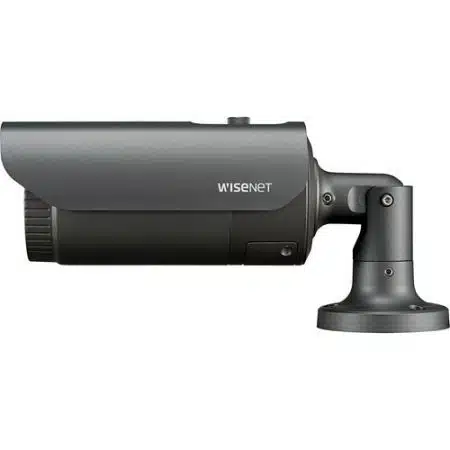

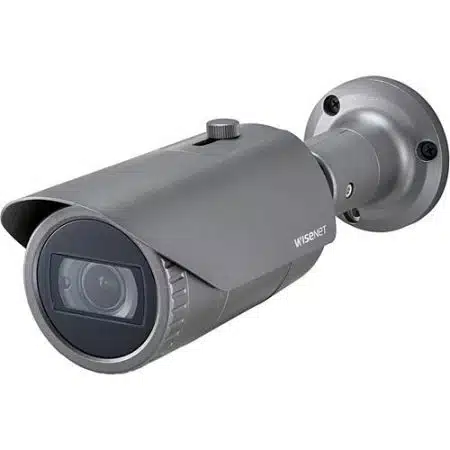

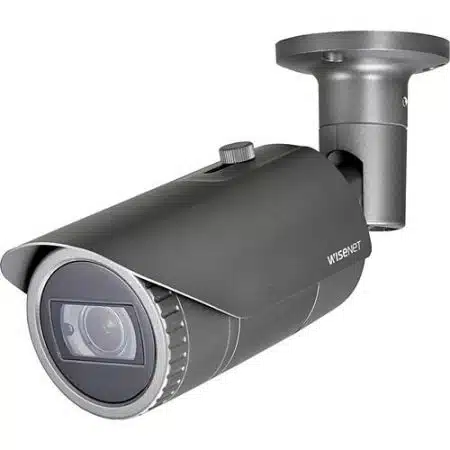

Hanwha QNO-8080R Q-Series 5MP IR Bullet Camera, 3.2-10mm Varifocal Lens, Dark
Max. 5MP (2592 x 1944) resolution
3.2~10 mm(3.1x) motorized varifocal lens
0.15Lux (Color), 0Lux (B/W, IR LED
$612.02
Product Overview
The QNO-8080R from Hanwha’s Q Series affordable network camera line is a 5 Megapixel bullet network camera featuring WiseStream II, Hanwha’s compression technology, triple codec H.265/H.264/MJPEG, 3.2~10mm motorized varifocal lens, IR, IP66, IK10, PoE, 120dB True WDR, Intelligent Video Analytics, Hallway View, and SD card slot (SD/SDHC/SDXC up to 128GB). The simple focus feature provides quick and easy focus with the press of a button.
Main Features
- Max. 5MP (2592 x 1944) resolution
- 3.2~10 mm(3.1x) motorized varifocal lens
- 0.15Lux (Color), 0Lux (B/W, IR LED on)
- Max. 30fps@5MP (H.265 / H.264)
- H.265, H.264, MJPEG codec support, Multiple streaming
- Day & Night, WDR (120dB)
- Tampering, Motion detection, Defocus detection
- Micro SD / SDHC / SDXC memory slot (Max. 128GB)
- Hallway view, WiseStream II support
- IR Viewable length 30m
| Specifications | |||||||||||||||||||||||
| Part Number | QNO-8080R | NDAA Compliant | Yes | Product Model | QNO-8080R | Product Name | 5MP Network IR Bullet Camera | Product Series | Q | Product Type | Network Camera | Weight (Approximate) (g) | 1190 | ||||||||||
| Technical Information | |||||||||||||||||||||||
| Connectivity Technology | Wired | Effective Camera Resolution | 5MP | Field of View | H: 100.3°(Wide)~31.2°(Tele) / V: 72.3°(Wide)~23.5°(Tele) / D: 133.1°(Wide)~38.8°(Tele) | HD Recording | Yes | Lens Type | Varifocal | Maximum Aperture | f/1.6 | Maximum Focal Length (mm) | 10 | Maximum Frame Rate | 30 fps | Minimum Focal Length | 3.2 mm | Night Vision | Yes | Night Vision Type | Infrared | Optical Zoom | 3.1x |
| Camera | |||||||||||||||||||||||
| Night Vision Distance | 98.43 ft | Night Vision Distance (mm) | 30000 | Wide Dynamic Range | Yes | ||||||||||||||||||
| Display & Graphics | |||||||||||||||||||||||
| Color Supported | Color | Effective Camera Resolution (Pixel) | 5000000 | Maximum Video Resolution | 1600 x 1200 | ||||||||||||||||||
| Environmental Conditions | |||||||||||||||||||||||
| Maximum Operating Temperature | 131°F (55°C) | Maximum Operating Temperature (°F) | 131 | Minimum Operating Temperature | -22°F (-30°C) | Minimum Operating Temperature (°F) | -22 | Operating Humidity | 90% | ||||||||||||||
| Exposure | |||||||||||||||||||||||
| Longest Shutter Speed | 1/5 Second | Shortest Shutter Speed | 1/12000 Second | ||||||||||||||||||||
| Interfaces/Ports | |||||||||||||||||||||||
| Network (RJ-45) | Yes | ||||||||||||||||||||||
| Lens | |||||||||||||||||||||||
| Focal Length | 10 mm | Lens Included | Yes | Maximum Focal Length | 10 mm | Minimum Aperture | f/2.9 | ||||||||||||||||
| Network & Communication | |||||||||||||||||||||||
| Remote Management | Yes | ||||||||||||||||||||||
| Physical Characteristics | |||||||||||||||||||||||
| Color | Gray | Color Family | Gray | Diameter (mm) | 91 | Form Factor | Bullet | Height | 12.7" | Height (mm) | 322.9 | Product Color | Dark Gray | Weight (Approximate) | 2.62 lb | Width | 3.6" | Width (mm) | 91 | ||||
| Product Information | |||||||||||||||||||||||
| Diameter | 3.6" | Length | 12.7" | Length (mm) | 322.9 | Mount Type | Box Mount, Pole Mount | ||||||||||||||||
| Projection Lens | |||||||||||||||||||||||
| Minimum Focal Length (mm) | 3.2 | ||||||||||||||||||||||
| Storage | |||||||||||||||||||||||
| Recording Formats | HD | ||||||||||||||||||||||
| Video | |||||||||||||||||||||||
| Maximum Frame Rate (fps) | 30 | ||||||||||||||||||||||
| Warranty | |||||||||||||||||||||||
| Limited Warranty | 3 Years | ||||||||||||||||||||||
| Miscellaneous | |||||||||||||||||||||||
| Features | Back Light Compensation (BLC), Built-in IR LED, Day/Night, SD Card Local Storage, Wide Dynamic Range | Impact Protection Rating | IK10 | Indoor/Outdoor | Outdoor | Ingress Protection Rating | IP66 |
| Weight | 3 lbs |
|---|
