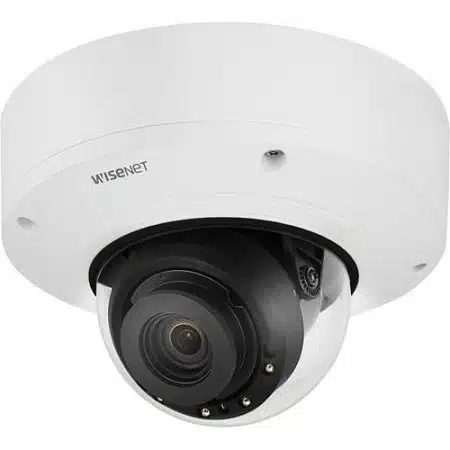

Hanwha PNV-A9081R P-Series 4K AI IR Vandal Dome Camera, 4.5-10mm Varifocal Lens,
4K / 8MP (3840 x 2160) resolution
0.05LuxatF1.6 (Color), 0 Lux (B/W IR LED On)
30 fpsatall resolutions
$1,968.87
Product Overview
Monitor an indoor or outdoor space the white PNV-A9081R from Hanwha Techwin. This unit uses a 1/1.8″ CMOS sensor to capture 3840 x 2160 resolution video at 30 fps. IR LEDs provide up to 98′ of night vision. The camera’s 4.5-10mm motorized varifocal lens delivers a 101.4 to 45.5° horizontal field of view and 2.2x optical zoom. Two-way audio is possible thanks to an audio input and output. Dual memory card slots support microSD/SDHC/SDXC cards for a total storage capacity of 512GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This NDAA-compliant dome camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP69-, NEMA 4X-, and IK10-rated aluminum enclosure for outdoor use in areas at risk of vandalism.
Main Features
- 4K / 8MP (3840 x 2160) resolution
- 0.05LuxatF1.6 (Color), 0 Lux (B/W IR LED On)
- 30 fpsatall resolutions (H.265/H.264)
- Video Analytics based on AI
- Object detection and classification (Person, Face, Vehicle, License Plate), Attribute, BestShot
- Compatible with Retail Insight v2.0 for Business Intelligence, Age/gender based People counting, Heatmap, Queue management
- 30m (98ft) IR illumination
- 4.5~10mm (2.2x) motorized varifocal lens
- H.265, H.264, MJPEG codec supported, multiple streaming
- Day & Night (ICR), WDR (120dB), P-Iris
| Specifications | |||||||||||||||||||||
| Part Number | PNV-A9081R | NDAA Compliant | Yes | Product Model | PNV-A9081R | Product Name | 4K AI IR Vandal Dome | Product Series | P | Product Type | Dome Camera | ||||||||||
| Technical Information | |||||||||||||||||||||
| Connectivity Technology | Wired | Effective Camera Resolution | 8MP | Field of View | H: 101.4°-45.5°, V: 53.6°-25.5°, D: 120.7°-52.3° | HD Recording | Yes | Lens Type | Varifocal | Maximum Aperture | F1.6 | Maximum Frame Rate | 30 fps | Minimum Focal Length | 4.5 mm | Night Vision | Yes | Night Vision Type | Infrared | Optical Zoom | 2.2x |
| Camera | |||||||||||||||||||||
| Night Vision Distance | 98.43 ft | Wide Dynamic Range | Yes | ||||||||||||||||||
| Display & Graphics | |||||||||||||||||||||
| Color Supported | Color | Maximum Video Resolution | 3840 x 2160 | ||||||||||||||||||
| Environmental Conditions | |||||||||||||||||||||
| Maximum Operating Temperature | 131°F | Minimum Operating Temperature | -40°F | Operating Humidity | <90% RH | ||||||||||||||||
| Exposure | |||||||||||||||||||||
| Longest Shutter Speed | 1/5 Second | Minimum Illumination | 0.005 lux | Shortest Shutter Speed | 1/12,000 Second | ||||||||||||||||
| Interfaces/Ports | |||||||||||||||||||||
| Network (RJ-45) | Yes | ||||||||||||||||||||
| Lens | |||||||||||||||||||||
| Focal Length | 4.5-10 mm | Lens Included | Yes | Maximum Focal Length | 10 mm | Minimum Aperture | f/2.65 | ||||||||||||||
| Network & Communication | |||||||||||||||||||||
| Remote Management | Yes | ||||||||||||||||||||
| Physical Characteristics | |||||||||||||||||||||
| Color | White | Color Family | White | Durability | Dustproof, Impact Resistant, Vandal Resistant, Waterproof | Form Factor | Dome | Product Color | White | Weight (Approximate) | 4.19 lb | ||||||||||
| Power Description | |||||||||||||||||||||
| Input Voltage | 12V DC | ||||||||||||||||||||
| Product Information | |||||||||||||||||||||
| Diameter | 7.09" | Mount Type | Ceiling Mount, Conduit Mount, Corner Mount, Gang Box Mount, Gooseneck Mount, Pendant Mount, Pole Mount, Wall Mount | ||||||||||||||||||
| Storage | |||||||||||||||||||||
| Recording Formats | 4K | Storage Type | Memory Card | ||||||||||||||||||
| Video | |||||||||||||||||||||
| Analog Video Signal Format | CVBS | ||||||||||||||||||||
| Warranty | |||||||||||||||||||||
| Limited Warranty | 3 Year | ||||||||||||||||||||
| Miscellaneous | |||||||||||||||||||||
| Features | 0.05Lux at F1.6 (Color), 0 Lux (B/W IR LED On), 30fps at all resolutions (H.265/H.264), 30m (98ft) IR illumination, 4.5-10mm (2.2x) motorized varifocal lens, 4K/8 MP (3840 x 2160) resolution, Day and Night (ICR), WDR (120dB), P-Iris, Digital image stabilization with built-in Gyro sensor, H.265, H.264, MJPEG codec supported, Multiple streaming, Object detection and classification (Person, Face, Vehicle, License Plate), Attribute, BestShot, Video Analytics based on AI | Impact Protection Rating | IK10 | Indoor/Outdoor | Outdoor | Ingress Protection Rating | IP66, IP67, IP6K9K | TAA Compliant | Yes | ||||||||||||
| Weight | 5 lbs |
|---|
