Hanwha PNM-7082RVD P-Series 2MP IR Outdoor Vandal-Rated WDR IP Dome Camera, 3-6mm Lens,
WiseNR, WiseStream II, extremeWDR (150 dB)
Maximum 1920×1080 resolution
Maximum 30 fps/25 fps
$1,282.05
Product Overview

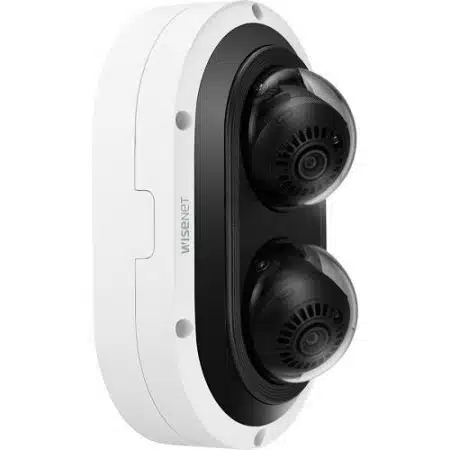

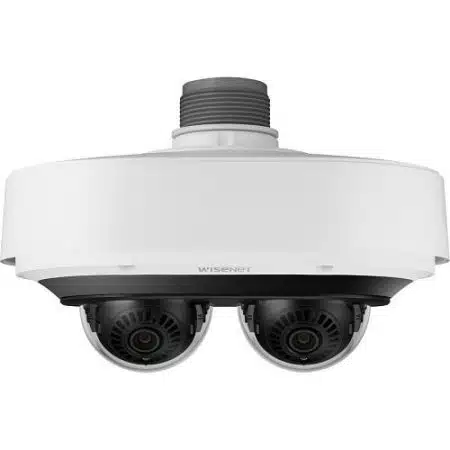

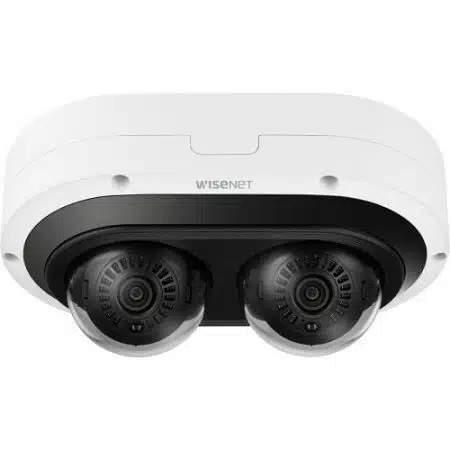

The PNM-7082RVD from Samsung is a 2 megapixel x 2 IR outdoor dome camera with 3-6mm lens.
Main Features
- WiseNR, WiseStream II, extremeWDR (150 dB)
- Maximum 1920×1080 resolution
- Maximum 30 fps/25 fps 2MP
- Color: 0.035lux(F2.2, 1/30sec, 30IRE), 0 Lux (IR LED on)
- 3~6mm(2x) motorized varifocal, 75° tilt angle
- IR viewable length: IR 25m(82ft)
- TPM 2.0(FIPS 140-2 certified)
- IP66, IK10, NEMA4X
| Specifications | |||||||||||||||||||||||
| Part Number | PNM-7082RVD | NDAA Compliant | Yes | Product Model | PNM-7082RVD | Product Name | 2MP X 2 IR Outdoor Dome Camera | Product Series | P | Product Type | Network Camera | Weight (Approximate) (g) | 1330 | ||||||||||
| Technical Information | |||||||||||||||||||||||
| Connectivity Technology | Wired | Effective Camera Resolution | 2MP | Field of View | H: 107(Wide)~56(Tele) V: 57(Wide)~31(Tele) D: 126(Wide)~64(Tele | HD Recording | Yes | Lens Type | Varifocal | Maximum Aperture | f/2.2 | Maximum Focal Length (mm) | 6 | Maximum Frame Rate | 30 fps | Minimum Focal Length | 3 mm | Night Vision | Yes | Night Vision Type | Infrared | Optical Zoom | 2x |
| Camera | |||||||||||||||||||||||
| Night Vision Distance | 82.02 ft | Night Vision Distance (mm) | 25000 | Wide Dynamic Range | Yes | ||||||||||||||||||
| Display & Graphics | |||||||||||||||||||||||
| Color Supported | Color | Effective Camera Resolution (Pixel) | 2000000 | Maximum Video Resolution | 1600 x 1200 | Number of Sensors | 2 | ||||||||||||||||
| Environmental Conditions | |||||||||||||||||||||||
| Maximum Operating Temperature | 131°F (55°C) | Maximum Operating Temperature (°F) | 131 | Minimum Operating Temperature | -40°F (-40°C) | Minimum Operating Temperature (°F) | -40 | Operating Humidity | 90% | ||||||||||||||
| Exposure | |||||||||||||||||||||||
| Longest Shutter Speed | 2 Second | Shortest Shutter Speed | 1/12000 Second | ||||||||||||||||||||
| Interfaces/Ports | |||||||||||||||||||||||
| Network (RJ-45) | Yes | ||||||||||||||||||||||
| Lens | |||||||||||||||||||||||
| Focal Length | 3-6 mm | Lens Included | Yes | Maximum Focal Length | 6 mm | Minimum Aperture | f/3.1 | ||||||||||||||||
| Network & Communication | |||||||||||||||||||||||
| Remote Management | Yes | ||||||||||||||||||||||
| Physical Characteristics | |||||||||||||||||||||||
| Color | White | Color Family | White | Depth | 5.3" | Depth (mm) | 135 | Durability | Vandal Resistant | Form Factor | Dome | Height | 3.7" | Height (mm) | 93.2 | Product Color | White | Weight (Approximate) | 2.93 lb | Width | 8.5" | Width (mm) | 215 |
| Product Information | |||||||||||||||||||||||
| Mount Type | Box Mount, Ceiling Mount, Corner Mount, Gooseneck Mount, Pendant Mount, Pole Mount, Wall Mount | ||||||||||||||||||||||
| Projection Lens | |||||||||||||||||||||||
| Minimum Focal Length (mm) | 3 | ||||||||||||||||||||||
| Storage | |||||||||||||||||||||||
| Recording Formats | Full HD | Storage Type | Memory Card | ||||||||||||||||||||
| Video | |||||||||||||||||||||||
| Maximum Frame Rate (fps) | 30 | ||||||||||||||||||||||
| Warranty | |||||||||||||||||||||||
| Limited Warranty | 3 Years | ||||||||||||||||||||||
| Miscellaneous | |||||||||||||||||||||||
| Features | Audio Detection, Back Light Compensation (BLC), Day/Night, Defog, Digital Noise Reduction, Highlight Compensation (HLC), Motion Detection, SD Card Local Storage, Tamper Detection, Wide Dynamic Range | Impact Protection Rating | IK10 | Indoor/Outdoor | Outdoor | Ingress Protection Rating | IP66, IP67 | TAA Compliant | Yes | ||||||||||||||
| Weight | 3 lbs |
|---|
