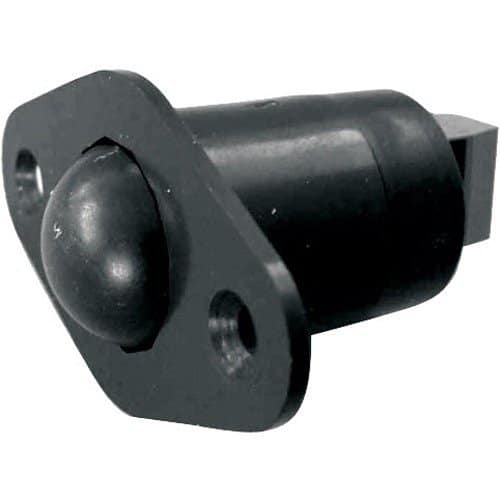

GRI DS-01T-B Short Roller Ball Plunger Switch, Terminal Block, Closed Loop, with 360˚ of Ball Access and Screw Down Flange, Brown
$9.27
Introducing the GRI DS-01T-B Short Roller Ball Plunger Switch, a reliable solution for your switching needs. This versatile switch features a terminal block design and offers 360˚ access to the ball, ensuring ease of installation and operation. Available in elegant white or brown, it is UL and ULC approved, guaranteeing safety and quality. With a total travel of .200 and pre-travel of .080 ± .030, it provides precise functionality. Standard 12″ leads are included, with options for longer leads or specialized cabling upon request. The terminal block option and built-in E.O.L. resistors and diodes enhance its adaptability. Enjoy peace of mind with a lifetime warranty. Upgrade your system today with the GRI DS-01T-B and experience unmatched performance!
Main Features
- Lifetime Warranty
- Colors:White or Brown
- UL and ULC Approved
- Available in Closed Loop and SPDT
- Total Travel – .200 Pre Travel – .080 ± .030
- Standard 12″ Leads
- Longer Leads, Zip Cord or Jacketed Cable on Request
- Terminal Block Available
- Terminal Switch Indicated by “T” Designation
- Built-in E.O.L. Resistors and Diodes Available on Request
| Specifications | |||||||||
| Part Number | DS-01T-B | Product Model | DS-01T-B | Product Name | DS-01T-B Plunger Switch | Product Series | DS-01 | Product Type | Plunger Switch |
| Technical Information | |||||||||
| Contact Configuration | N.O. | Mounting Type | Recessed Mount | ||||||
| Physical Characteristics | |||||||||
| Color | Brown | Color Family | Brown | Product Color | Brown | ||||
| Product Information | |||||||||
| Contact Type | Closed Loop | Installation Type | Hybrid | ||||||
| Warranty | |||||||||
| Limited Warranty | Lifetime | ||||||||
| Miscellaneous | |||||||||
| Additional Information | Closed loop | Package Contents | DS-01T-B Plunger Switch | ||||||
| 12" wire leads | Mounting Hardware | ||||||||
| Screw down flange | Spacer | ||||||||
| Hermetically sealed | |||||||||
| Plated contacts resist sticking and/or freezing | |||||||||
| Weight | 2 lbs |
|---|
