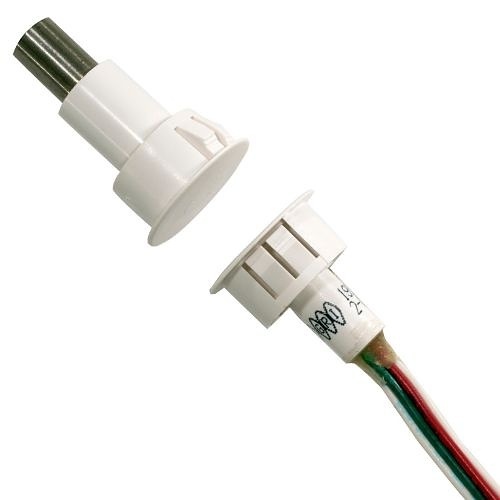

GRI 195-12 3/4″ Steel Door Recessed Switch Set, Standard Gap, 5W, 175VDC, 0.25 Amp, DPDT, X 2,
Lifetime Warranty
Colors:White, Brown, Grey or Black
UL and ULC
$18.87
Product Overview
The GRI 180 Series is the industry standard 3/4″ diameter recessed steel door switch set with 12″ leads. The 184 Series is a 1″ diameter switch set.
The innovative GRI 8080-T Series is a 3/4″ diameter recessed switch set designed for residential, commercial and industrial steel doors and frames. The shorter length and the introduction of PC board type terminals makes the installation of the set quick and simple with no soldering, B connectors or tape to catch during installation or removal, reducing the cost of installation and creating greater profitability.
Main Features
- Lifetime Warranty
- Colors:White, Brown, Grey or Black
- UL and ULC Approved
- 180-12 & 184-12 UL 10C Fire Rated
- Available in Closed Loop, Open Loop and SPDT
- 3/4″ and 1″ Diameter Mounting
- Standard 12″ Leads or Terminals
- Self-Locking
- Solid, One Piece Design
- 7/8″ Diameter also Available – Call Factory
| Specifications | |||||||||||||||
| Part Number | 195-12-B | Product Name | Magnetic Contact | Product Type | Magnetic Contact | ||||||||||
| Technical Information | |||||||||||||||
| Connectivity Technology | Wired | Contact Configuration | DPDT | Lead Length | 12" | Lead Length (mm) | 304.8 | Mounting Type | Recessed Mount | Recommended Use | Door | Standard Gap | 0.5" | Standard Gap (mm) | 12.7 |
| Physical Characteristics | |||||||||||||||
| Color | Brown | Color Family | Brown | Diameter (mm) | 19.05 | Product Color | Brown | Product Material | Steel | ||||||
| Power Description | |||||||||||||||
| Power Source | DC | ||||||||||||||
| Product Information | |||||||||||||||
| Diameter | 0.8" | Installation Type | Commercial | ||||||||||||
| Weight | 2 lbs |
|---|
