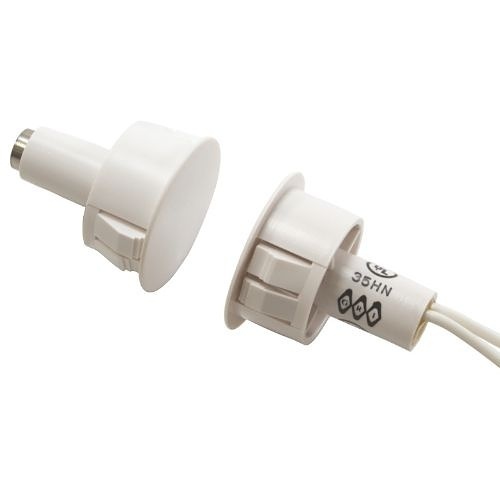

GRI 190-12-B 3/4″ Steel Door Recessed Switch Set, Standard Gap, 5W, 175VDC, 0.25 Amp, Open/Closed SPDT, C,
$12.00
Product Overview
The GRI 180 Series is the industry standard 3/4″ diameter recessed steel door switch set with 12″ leads. The 184 Series is a 1″ diameter switch set.
The innovative GRI 8080-T Series is a 3/4″ diameter recessed switch set designed for residential, commercial and industrial steel doors and frames. The shorter length and the introduction of PC board type terminals makes the installation of the set quick and simple with no soldering, B connectors or tape to catch during installation or removal, reducing the cost of installation and creating greater profitability.
Main Features
- Lifetime Warranty
- Colors:White, Brown, Grey or Black
- UL and ULC Approved
- 180-12 & 184-12 UL 10C Fire Rated
- Available in Closed Loop, Open Loop and SPDT
- 3/4″ and 1″ Diameter Mounting
- Standard 12″ Leads or Terminals
- Self-Locking
- Solid, One Piece Design
- 7/8″ Diameter also Available – Call Factory
| Specifications | |||||||||||||||||||
| Part Number | 190-12-B | Product Name | 180 Magnetic Contact | Product Series | 180 | Product Type | Magnetic Contact | ||||||||||||
| Technical Information | |||||||||||||||||||
| Connectivity Technology | Wired | Contact Configuration | SPDT | Contact Form | Form C | Lead Length | 12" | Lead Length (mm) | 304.8 | Mounting Type | Recessed Mount | Power Consumption | 5W | Recommended Use | Door | Standard Gap | 0.5" | Standard Gap (mm) | 12.7 |
| Physical Characteristics | |||||||||||||||||||
| Application/Usage | Commercial, Industrial, Residential | Color | Brown | Color Family | Brown | Product Color | Brown | Product Material | Steel | ||||||||||
| Power Description | |||||||||||||||||||
| Input Current | 250 mA | Input Current (A) | 0.25 | Input Voltage | 175V DC | Input Voltage (V DC) | 175 | Power Consumption (W) | 5 | Power Source | DC | ||||||||
| Product Information | |||||||||||||||||||
| Contact Type | Closed Loop, Open Loop | Installation Type | Commercial | ||||||||||||||||
| Warranty | |||||||||||||||||||
| Limited Warranty | Lifetime | ||||||||||||||||||
| Miscellaneous | |||||||||||||||||||
| Certifications & Standards | UL and ULC Approved | Features | Built-in Resistor, Self-lock Mounting | ||||||||||||||||
