Solid bare copper conductors
Overall foil shield
Rated for plenum, riser, and general purpose indoor
$433.49

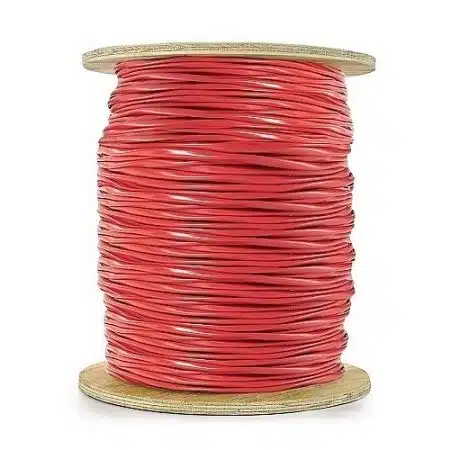

This Genesis® cable features 2 solid 14 AWG copper conductors, an overall foil shield with a drain wire, and a plenum rating. Choose this cable for a dependable fire alarm system wiring solution.
| Specifications | |||||||||||||||||||||||||||
| Part Number | 46081004 | Packaged Quantity | 1 | Product Model | 46081004 | Product Name | 46081004 - 14 AWG 2C Sol SHIELDED Plenum, Red, 1000 ft. Reel | Product Type | Fire Alarm Cable | ||||||||||||||||||
| Technical Information | |||||||||||||||||||||||||||
| American Wire Gauge | 14AWG | Cable Listing | CL3P, FPLP, FT6 | Cable Rating | Plenum | Conductor Count | 2 | Connector on First End | Bare Wire | Connector on Second End | Bare Wire | Core/Cladding Diameter | 14/2 | Device Supported | Fire Alarm | Impedance | 33 ohms | Jacket Material | LS PVC | Number of Conductors | 2 | Number of Pairs | 1 | Shielding | Yes | Solid or Stranded | Solid |
| Physical Characteristics | |||||||||||||||||||||||||||
| Cable Length | 1000' | Color | Red | Insulation Material | LS-PVC | Material | Bare Copper | Package Type | Reel | Weight (Approximate) | 37.90 lb | ||||||||||||||||
| Warranty | |||||||||||||||||||||||||||
| Limited Warranty | 3 Year; 3-for-1 | ||||||||||||||||||||||||||
| Miscellaneous | |||||||||||||||||||||||||||
| Environmental Certification | RoHS | Indoor/Outdoor | Indoor | TAA Compliant | Yes | ||||||||||||||||||||||
| Weight | 40 lbs |
|---|
