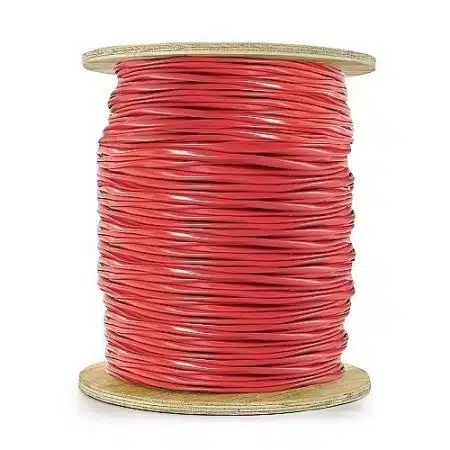

Genesis 43121004 16/4 Solid Riser Fire Alarm Cable, Unshielded, FPLR, CL3R, FT4, Sunlight Resistant, 1000′ (304.8m), Reel,
Solid bare copper conductors
Rated for riser and general purpose indoor installation
Rated for sunlight (UV)
$452.99
Product Overview
This Genesis® cable features 4 solid 16 AWG copper conductors and a riser rating. Choose this cable for a dependable fire alarm system wiring solution.
Main Features
- Solid bare copper conductors
- Rated for riser and general purpose indoor installation
- Rated for sunlight (UV) resistance
- 1000 ft. (304.8 m) reel
- Red jacket
| Specifications | |||||||||||||||||||||||||||
| Part Number | 43121004 | Packaged Quantity | 1 | Product Model | 43121004 | Product Name | 43121004 Control Cable | Product Type | Fire Alarm Cable | ||||||||||||||||||
| Technical Information | |||||||||||||||||||||||||||
| American Wire Gauge | 16AWG | Cable Listing | CL3R, FPLR, FT4, Sunlight Resistant | Cable Rating | Riser | Conductor Count | 4 | Conductor Material | Bare Copper | Connector on First End | Bare Wire | Connector on Second End | Bare Wire | Core/Cladding Diameter | 16/4 | Device Supported | Fire Alarm | Jacket Material | PVC | Number of Conductors | 4 | Number of Pairs | 1 | Shielding | No | Solid or Stranded | Solid |
| Physical Characteristics | |||||||||||||||||||||||||||
| Cable Length | 1000' | Color | Red | Insulation Material | PP | Material | Bare Copper | Package Type | Reel | Weight (Approximate) | 40.10 lb | ||||||||||||||||
| Warranty | |||||||||||||||||||||||||||
| Limited Warranty | 3 Year; 3-for-1 | ||||||||||||||||||||||||||
| Miscellaneous | |||||||||||||||||||||||||||
| Weight | 40.1 lbs |
|---|
