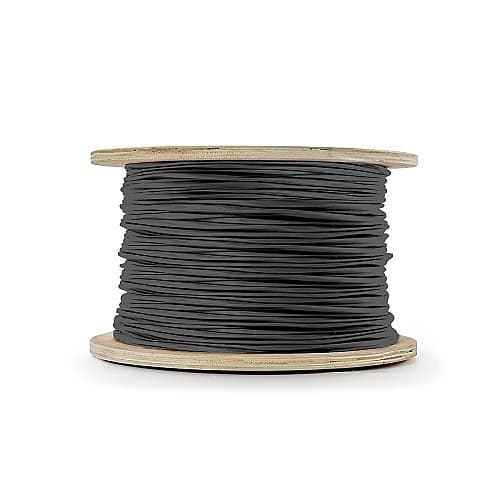

Genesis 41565008 18/2 Stranded Direct Burial Fire Alarm Cable, Unshielded, FPL, CL2, Sunlight Resistant, 500′ (152.4 m), Reel,
Stranded bare copper conductors
Rated for general purpose indoor installation
Rated for direct burial outdoor installation and sunlight (UV)
$139.49
Product Overview
This Genesis® cable features 2 stranded 18 AWG copper conductors and a direct burial rating. Choose this cable for a dependable fire alarm system wiring solution.
Main Features
- Stranded bare copper conductors
- Rated for general purpose indoor installation
- Rated for direct burial outdoor installation and sunlight (UV) resistance
- 500 ft. (152.4 m) reel
- Black jacket
| Specifications | |||||||||||||||||||||||||||
| Part Number | 41565008 | Packaged Quantity | 1 | Product Model | 41565008 | Product Name | 41565008 - 18 Awg 2C Str Direct Burial, Black, 500 FT. Reel | Product Type | Fire Alarm Cable | Weight (Approximate) (g) | 8300.74 | ||||||||||||||||
| Technical Information | |||||||||||||||||||||||||||
| American Wire Gauge | 18AWG | Cable Listing | CL2, Direct Burial, FPL, Sunlight Resistant | Cable Rating | Outdoor | Conductor Count | 2 | Conductor Material | Bare Copper | Connector on First End | Bare Wire | Connector on Second End | Bare Wire | Core/Cladding Diameter | 18/2 | Device Supported | Fire Alarm | Jacket Material | PVC | Number of Conductors | 2 | Number of Pairs | 1 | Shielding | No | Solid or Stranded | Stranded |
| Physical Characteristics | |||||||||||||||||||||||||||
| Cable Length | 500' | Cable Length (mm) | 152400 | Color | Black | Insulation Material | SRPVC | Material | Bare Copper | Package Type | Reel | Weight (Approximate) | 18.30 lb | ||||||||||||||
| Warranty | |||||||||||||||||||||||||||
| Limited Warranty | 3 Year; 3-for-1 | ||||||||||||||||||||||||||
| Miscellaneous |
| Weight | 18.3 lbs |
|---|
