Genesis 32091012 22/12 Stranded Shielded Plenum Cable, CL3P, FPLP, CMP, FT6, 1000′ (304.8m), Reel, Natural
Stranded bare copper conductors
Overall foil shield
Rated for plenum, riser, and general purpose indoor
$526.49
Product Overview
This Genesis® cable features 12 stranded 22 AWG copper conductors, an overall foil shield with a drain wire, and a plenum rating. Choose this cable for a dependable connection for security, controls, audio, and other low-voltage applications.
Main Features
- Stranded bare copper conductors
- Overall foil shield
- Rated for plenum, riser, and general purpose indoor installation

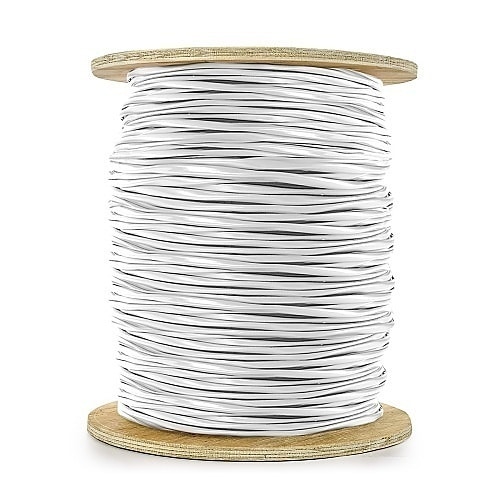

- 1000 ft. (304.8 m) reel
- Natural (off-white) jacket
| Specifications | |||||||||||||||||||||||
| Part Number | 32091012 | Packaged Quantity | 1 | Product Model | 32091012 | Product Name | 32091012 Control Cable | Product Type | Access & Security Cable | ||||||||||||||
| Technical Information | |||||||||||||||||||||||
| American Wire Gauge | 22AWG | Cable Listing | CL3P, CMP, FPLP, FT6 | Cable Rating | Plenum | Cable Type | Multi-conductor/Multi-pair | Conductor Count | 1 | Conductor Material | Bare Copper | Device Supported | Alarm, Phone | Jacket Material | LS PVC | Number of Conductors | 12 | Number of Pairs | 1 | Shielding | Yes | Solid or Stranded | Stranded |
| Physical Characteristics | |||||||||||||||||||||||
| Cable Length | 1000' | Color | Natural | Insulation Material | LS-PVC | Material | Bare Copper | Package Type | Reel | Weight (Approximate) | 41.50 lb | ||||||||||||
| Warranty | |||||||||||||||||||||||
| Limited Warranty | 3 Year; 3-for-1 | ||||||||||||||||||||||
| Miscellaneous | |||||||||||||||||||||||
| Environmental Certification | RoHS | Environmentally Friendly | Yes | Features | Stranded | Indoor/Outdoor | Indoor | TAA Compliant | Yes | ||||||||||||||
| Weight | 42 lbs |
|---|
