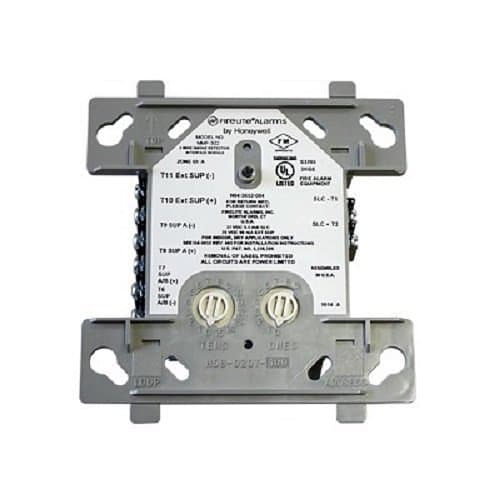

Fire-Lite MMF-302 Standard-Sized Addressable Monitor Module for 2-Wire, 24V, Smoke Detectors on Style (Class A) or Style (Class B)
MMF-300(A) is a standard-sized module that supervises either a Style D (Class A) or Style B (Class B) circuit of dry-contact input devices.
MMF-301(A) is a miniature monitor module a mere 1.3″ (3.302cm) used to supervise a Style B (Class B) circuit of dry-contact input devices.
MMF-302(A) is a standard-sized module used to monitor and supervise compatible two-wire, 24 volt, smoke detectors on a Style D (Class A) or Style B (Class B)
$231.40
Product Overview
Four monitor modules are available for Fire-Lite Alarm’s MS-9050UD, MS-9200UDLS, and MS-9600 intelligent fire alarm control panels to suit a variety of applications. Monitor modules are used to supervise a circuit of dry-contact input devices, such as conventional heat detectors and pull stations, or monitor and power a circuit of two-wire smoke detectors.
Main Features
- MMF-300(A) is a standard-sized module that supervises either a Style D (Class A) or Style B (Class B) circuit of dry-contact input devices.
- MMF-301(A) is a miniature monitor module a mere 1.3″ (3.302cm) used to supervise a Style B (Class B) circuit of dry-contact input devices.
- MMF-302(A) is a standard-sized module used to monitor and supervise compatible two-wire, 24 volt, smoke detectors on a Style D (Class A) or Style B (Class B) circuit.
- MDF-300(A) is a standard-sized dual monitor module used to monitor and supervise two independent two-wire Style B (Class B) dry-contact initiating device circuits (IDCs) at two separate, consecutive addresses.
- Built-in type identification automatically identifies these devices as a monitor module to the control panel.
| Specifications | |||||||||
| Part Number | MMF-302 | Product Model | MMF-302 | Product Name | MMF-302 Addressable Control Module | Product Series | MMF | Product Type | Addressable Monitor Module |
| Technical Information | |||||||||
| Device Supported | Addressable Two-wire System | ||||||||
| Physical Characteristics | |||||||||
| Depth | 1.3" | Height | 4.5" | Width | 4" | ||||
| Warranty | |||||||||
| Limited Warranty | 3 Year | ||||||||
| Miscellaneous | |||||||||
| Compatibility | Two Wire Smoke Detectors | Package Contents | MMF-302 Addressable Control Module | ||||||
| Installation Instructions | |||||||||
| Mounting Hardware | |||||||||
| Weight | 2 lbs |
|---|
