Fire-Lite D365PL Intelligent Non-Relay Photoelectric Duct Smoke
Photoelectric, integrated low-flow technology
Air velocity rating from 100’/min – 4,000’/min (0.5 m/s – 20.32 m/s)
Broad ranges for operating temperature (-4°F – 158°F, -20°C – 70°C) and humidity (0% – 93%
$371.99
Product Overview

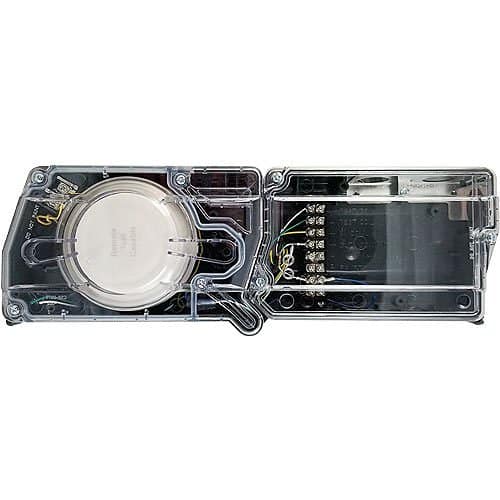

The Fire-Lite D365PL intelligent non-relay photoelectric duct smoke detector and DNRW watertight non-relay photoelectric duct smoke detector feature a pivoting housing that fits both square and rectangular footprints capable of mounting to a round or rectangular duct.These units sense smoke in the most challenging conditions, operating in airflow speeds of 100 to 4,000 feet per minute (0.5 – 20.32 m/s), temperatures of -4°F – 158°F (-20°C –70°C), and a humidity range of 0 – 93 percent (non-condensing).
Main Features
- Photoelectric, integrated low-flow technology
- Air velocity rating from 100’/min – 4,000’/min (0.5 m/s – 20.32 m/s)
- Broad ranges for operating temperature (-4°F – 158°F, -20°C – 70°C) and humidity (0% – 93% non-condensing)
- Versatile mounting options: square or rectangular configuration
- Sampling tube installs from front or back of the detector with no tools required
- Cover tamper signal
- Increased wiring space with a newly added 3/4″ conduit knockout
- Easily accessible code wheels on sensor head (included with D365PL)
- Clear cover for convenient visual inspection (D365PL only)
- Remote testing capability
| Specifications | |||||||
| Part Number | D365PL | Product Line | InnovairFlex | Product Name | Smoke Detector | Product Type | Smoke Detector |
| Technical Information | |||||||
| Connectivity Technology | Wired | Detectable Medium | Smoke | Maximum Air Velocity | 20.32 m/s | Sensing Technology | Photoelectric |
| Controls/Indicators | |||||||
| Status Indicators | Alarm, LED | ||||||
| Physical Characteristics | |||||||
| Weight (Approximate) | 1.6 lb | ||||||
| Power Description | |||||||
| Input Voltage | 32V DC | Power Source | AC, DC | ||||
| Weight | 2 lbs |
|---|
