Product Overview

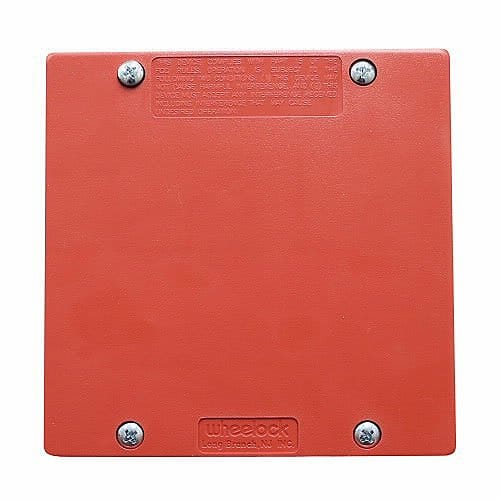

The Eaton Wheelock Series SM and DSM Sync Modules are utilized with the Series AS/AH, Series RSS, Series RSSP, Series and selected strobe applications with other Wheelock combination appliances.When used with Series AS Audible Strobes, the SM and DSM Sync Modules provide independent operation of synchronized temporal pattern (code 3) horn and synchronized strobe flash, as well as the ability to silence the horn while maintaining the strobe flash. while using only a single pair of wires. The sync modules are available in two versions; the SM-12/24 for control of a Class B NAC circuit; and a dual output version, the DSM-12/24 for control of either a Class A or two (2) Class B NAC circuits.
Main Features
- Uniquely designed to accept an independent strobe and audible input from the FACP and convert to a single output that connects toWheelock compatible appliances.
- 3 Aere per circuit current handling at 12 or 24V DC
- Low operating current draw
- Compatible with all standard fire alarm control panels
- Meets the NFPA-72 requirement for Temporal Pattern when used with the Series AS/AH and/or Series Exceder
