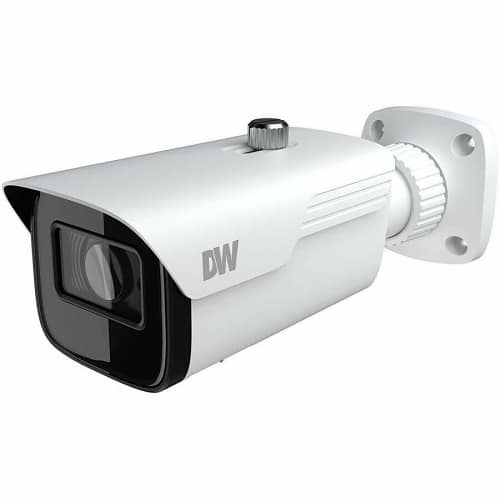

Digital Watchdog DWC-VSBD04BI MEGApix 4MP WDR Bullet IP Camera with Smart IR, 2.8mm Fixed Lens, NDAA Compliant,
4MP 1/3″ image sensor at real-time 30 fps
2.8 mm fixed lens
True Wide Dynamic Range
$170.99
Product Overview
Line crossing
Once a pre-defined line is crossed from either direction, an event notification will be sent.
Perimeter intrusion
Once a pre-defined area is set, any crossing of the lines towards the area, out of the area, or both, will trigger an alarm.
Video tampering detection – scene change
When the camera is moved, and the Field of View (FoV) is different, an event notification will be sent.
Video tampering detection – abnormal color detection
When the camera’s color reproduction is changed, an event notification will be sent.
Video tampering detection – video blur
When a sudden blur or loss in visibility is detected, an event notification will be sent.
Smart IR™
Smart IR™ adjusts the image for IR cameras to prevent excessive illumination on objects that are in the front of the scene and offers a clear image in B/W without any loss of detail.
True Wide Dynamic Range (WDR)
Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image.
H.265 codec support
High-Efficiency video codec standards deliver 25% to 50% better data compression while maintaining video quality.
Main Features
- 4MP 1/3″ image sensor at real-time 30 fps
- 2.8 mm fixed lens
- True Wide Dynamic Range (WDR)
- Multiple codecs (H.265, H.264, MJPEG) with simultaneous dual-stream
- 164ft range Smart IR™
- Line crossing video analytics
- Perimeter intrusion video analytics
- Video tampering with scene change detection video analytics
- Video tampering with video blur detection video analytics
- Video tampering with abnormal color detection video analytics
| Specifications | |||||||||||||||||||
| Part Number | DWC-VSBD04BI | NDAA Compliant | Yes | Product Line | MEGApix | Product Model | DWC-VSBD04Bi | Product Name | MEGApix 4MP bullet IP camera with fixed lens and IR | Product Series | V-Class | Product Type | Network Camera | ||||||
| Technical Information | |||||||||||||||||||
| Connectivity Technology | Wired | Effective Camera Resolution | 4MP | Field of View | Horizontal Field of View (HFOV) 94° | HD Recording | Yes | Lens Type | Fixed | Maximum Aperture | f/1.6 | Maximum Frame Rate | 30 fps | Minimum Focal Length | 2.8 mm | Night Vision | Yes | Night Vision Type | Infrared |
| Camera | |||||||||||||||||||
| Night Vision Distance | 164 ft | Wide Dynamic Range | Yes | ||||||||||||||||
| Display & Graphics | |||||||||||||||||||
| Color Supported | Color | Maximum Video Resolution | 2560 x 1440 | ||||||||||||||||
| Environmental Conditions | |||||||||||||||||||
| Maximum Operating Temperature | 140°F (60°C) | Minimum Operating Temperature | -22°F (-30°C) | Operating Humidity | 95% | ||||||||||||||
| Exposure | |||||||||||||||||||
| Longest Shutter Speed | 1/2 Second | Shortest Shutter Speed | 1/100000 Second | ||||||||||||||||
| Interfaces/Ports | |||||||||||||||||||
| Network (RJ-45) | Yes | ||||||||||||||||||
| Lens | |||||||||||||||||||
| Focal Length | 2.8 mm | Lens Included | Yes | Maximum Focal Length | 2.80 mm | ||||||||||||||
| Network & Communication | |||||||||||||||||||
| Remote Management | Yes | ||||||||||||||||||
| Physical Characteristics | |||||||||||||||||||
| Color | White | Color Family | White | Depth | 2.8" | Durability | Dust Resistant, Impact Resistant, Waterproof, Weather Resistant | Form Factor | Bullet | Height | 8.7" | Product Color | White | Weight (Approximate) | 1.52 lb | Width | 3.2" | ||
| Power Description | |||||||||||||||||||
| Input Voltage | 12V DC | ||||||||||||||||||
| Product Information | |||||||||||||||||||
| Mount Type | Ceiling Mount, Wall Mount | ||||||||||||||||||
| Projection Lens | |||||||||||||||||||
| Minimum Focal Length (mm) | 2.8 | ||||||||||||||||||
| Storage | |||||||||||||||||||
| Recording Formats | 2K | Storage Type | Memory Card | ||||||||||||||||
| Video | |||||||||||||||||||
| Maximum Frame Rate (fps) | 30 | ||||||||||||||||||
| Warranty | |||||||||||||||||||
| Limited Warranty | 5 Year | ||||||||||||||||||
| Miscellaneous | |||||||||||||||||||
| Environmental Certification | RoHS | Environmentally Friendly | Yes | Features | 3D Digital Noise Reduction, Back Light Compensation (BLC), Cross Line Detection, Digital Watermark, Highlight Compensation (HLC), Human Detection, Motion Detection, Privacy Masking, Smart IR, Tamper Detection, Wide Dynamic Range | Impact Protection Rating | IK10 | Ingress Protection Rating | IP67 | ||||||||||
| Weight | 2 lbs |
|---|
